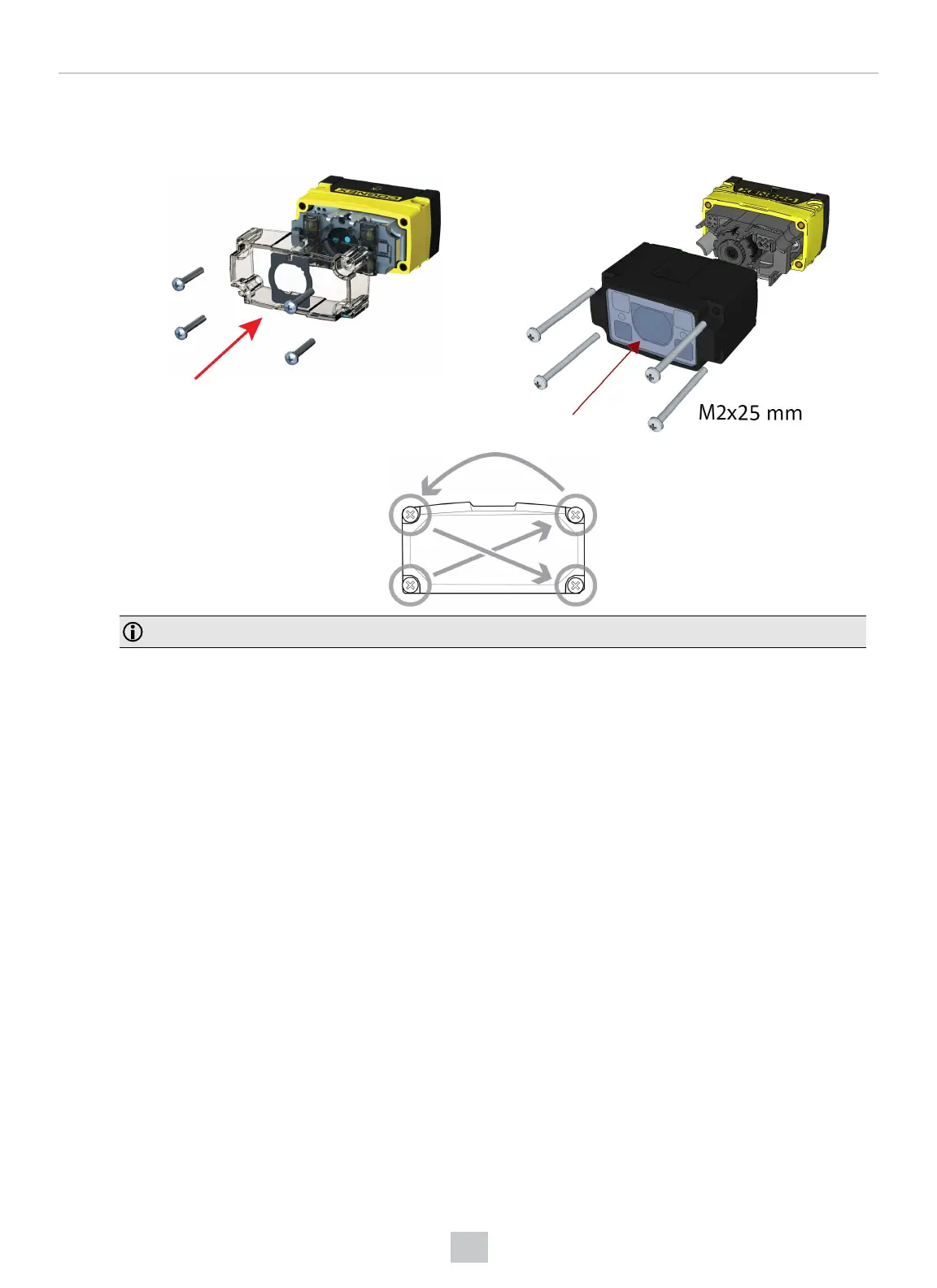

3. Remount the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a

torque wrench.

DM70 with 6.2 mm lens DM70 with 16 mm lens

Note: The rib in the front cover must be oriented to the top side.

Mechanical Information
