Cognex DataMan 50

To Next Page

To Previous Page

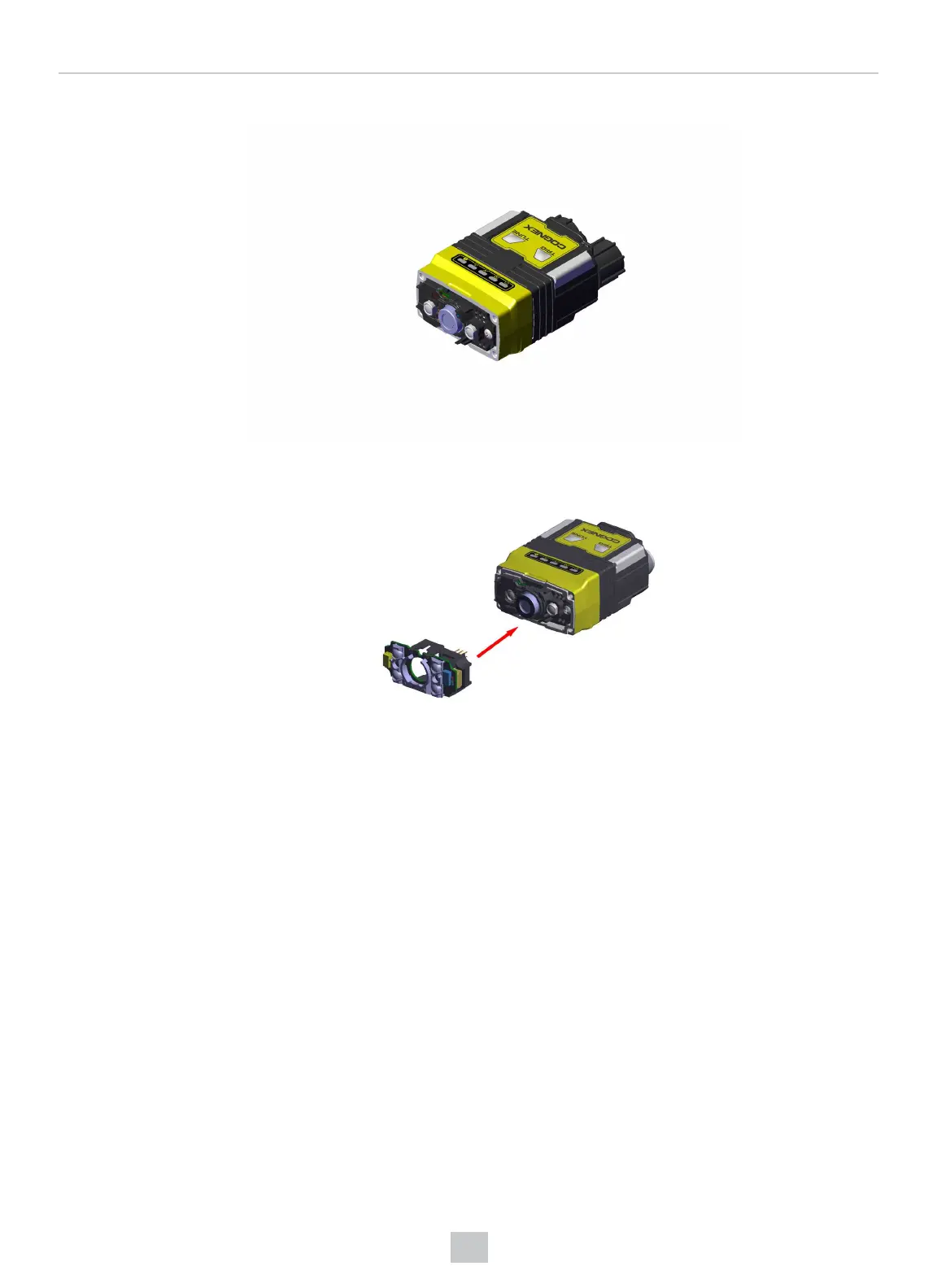

6. Press the liquid lens onto the imager lens until you reach the stop.

7. Re-attach the illumination module.

Mechanical Information
