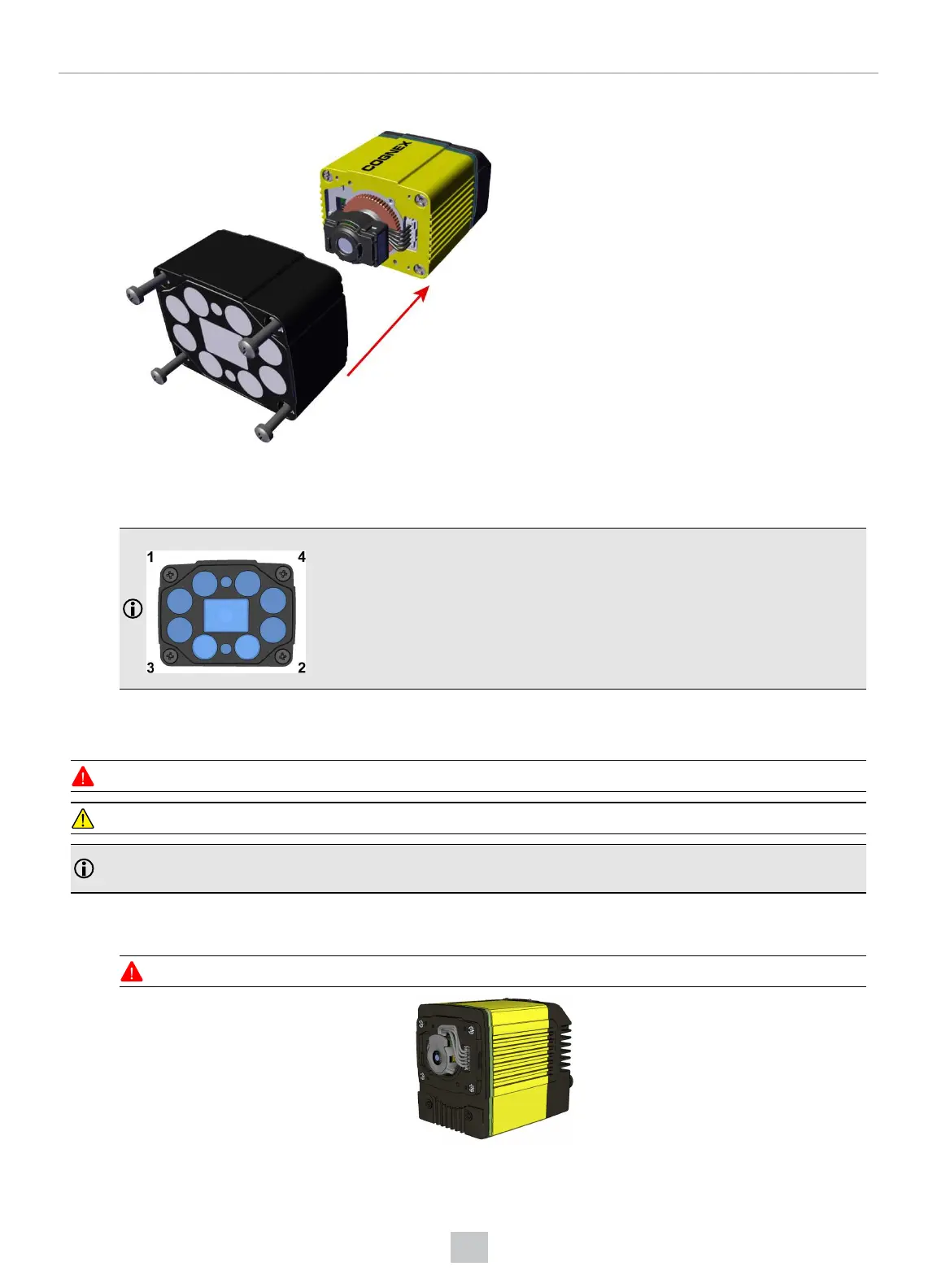

5. Place the HPIL unit on the front of the device.
CUSTOMIZED CAPTIVE SCREW, PHILLIPS PAN HEAD, M3x28 mm
6. Screw in the four screws.
Note: Use 0.2 Nm torque on the screws and tighten in sequence.
Replacing a 10.3 mm Lens
To remove and replace a 10.3 mm lens of a DataMan 370 or 470 series reader, perform the following steps:
WARNING: Disconnect the DataMan reader from power before continuing.
CAUTION: Do not leave the image sensor exposed to the environment.
Note: The following steps describe service procedures for both the DataMan 370 and the 470 series readers, but
the images show only the DataMan 470.
1. If you have a liquid lens module attached to your 10.3 mm lens, carefully disconnect the liquid lens module cable.
If you only have a 10.3 mm lens inserted, jump to step 3 of this procedure.
WARNING: Do not pinch or pull the cable.
61
Mechanical Information
