and four M6 DIN 912 (ISO 4762) screws for securing the bracket to a mounting surface.
CAUTION: It is recommended the reader be grounded, either by mounting the reader to a fixture that is electrically
grounded or by attaching a wire from the reader’s mounting fixture to frame ground or Earth ground. If a ground wire
is used, it should be attached to one of the four mounting points on the back plate of the reader; not to the mounting
points on the front of the reader.

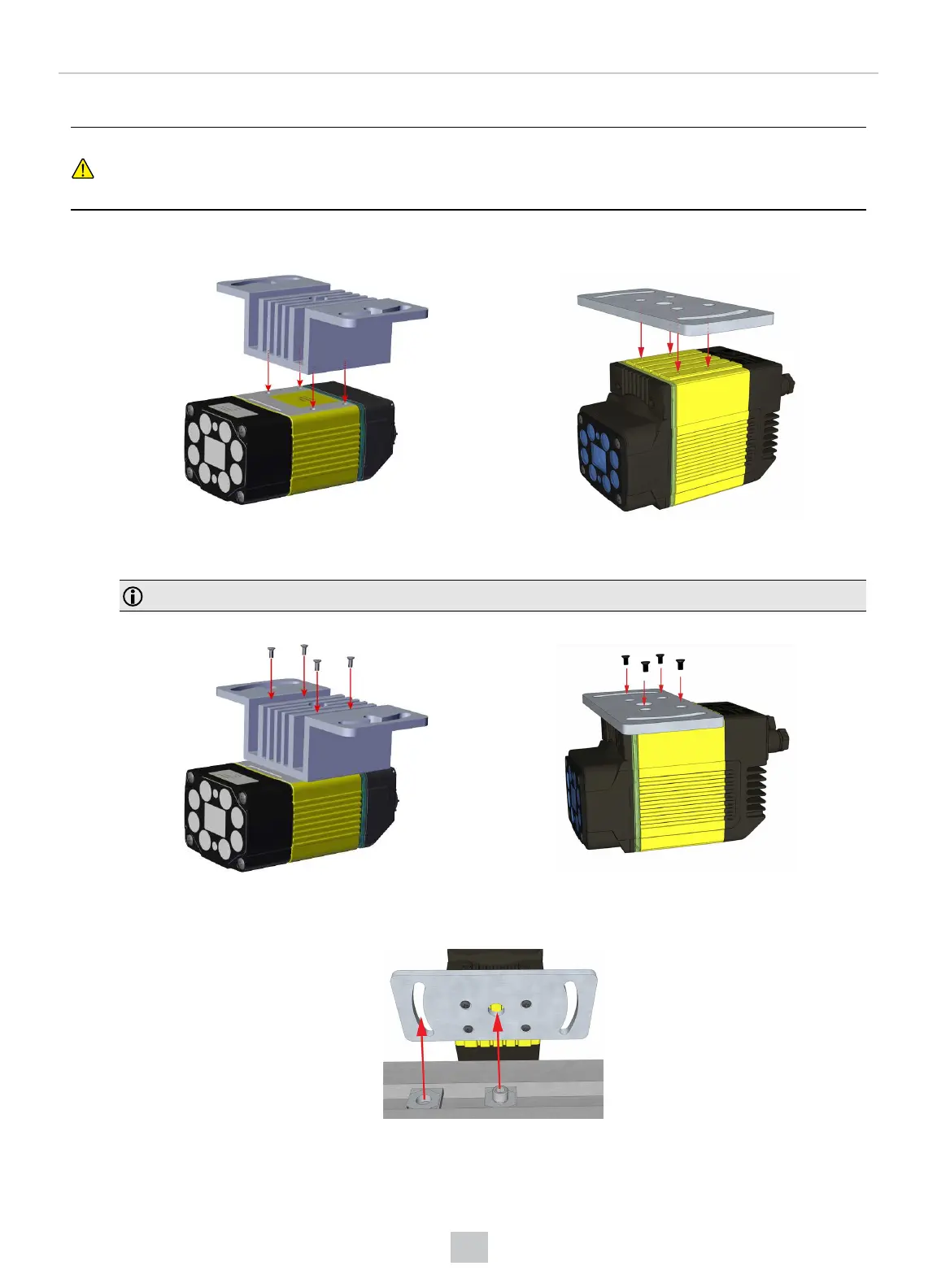

1. Align the holes on the mounting surface with the mounting holes on the reader.
DataMan 370 DataMan 470
2. Insert the M3x5, DIN 965 (4x) screws into the mounting holes.
Note: Use a 2.5 mm hex wrench to torque the captive screws to 0.60 Nm (5 in-lb). Tighten in sequence.
DataMan 370 DataMan 470
3. Align the mounting holes on the mounting plate with the M6 drop-in nuts and the M6, DIN 912 (ISO 4762) socket
head screw in the mounting surface.
80
Mechanical Information
