3.1 Exer 3/6

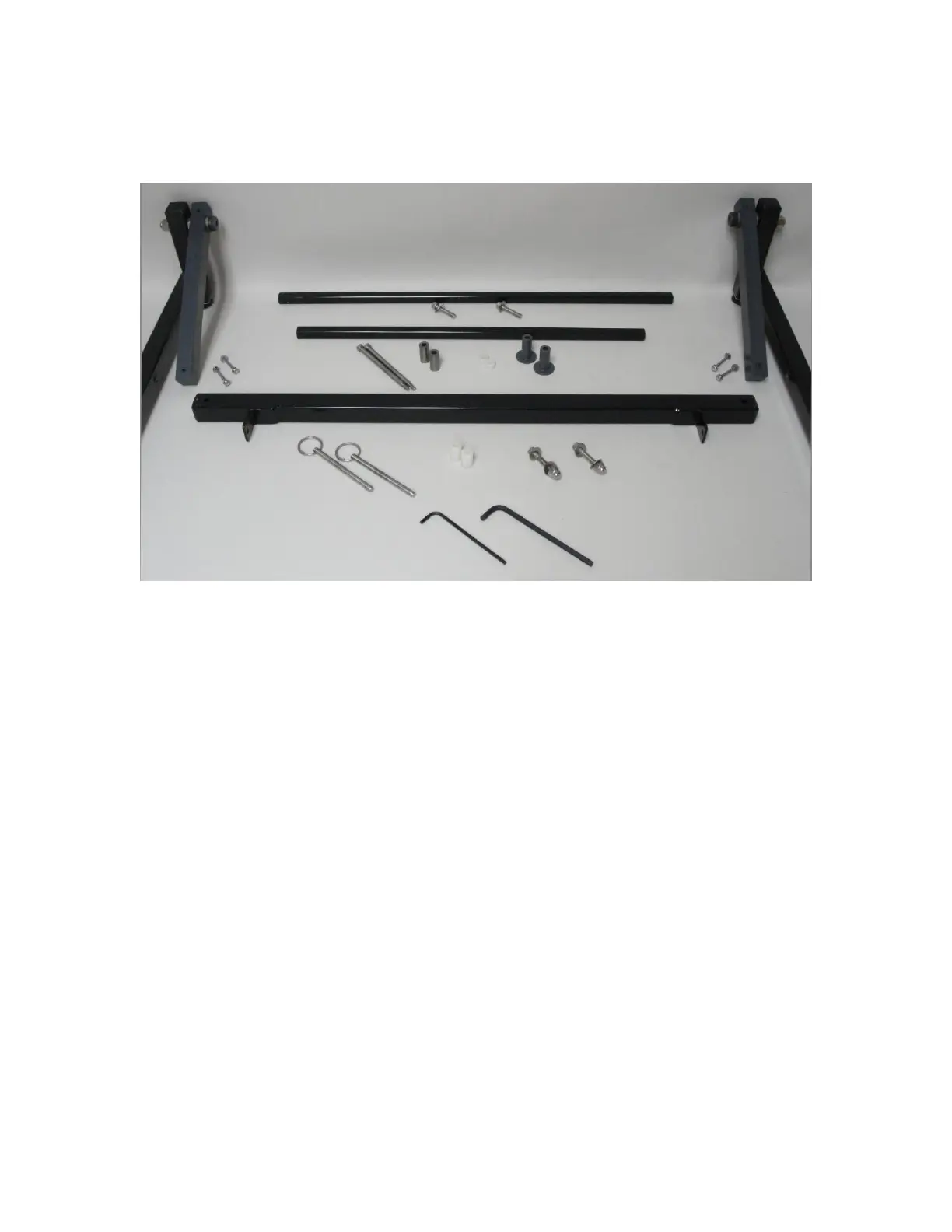

Additional hardware for the Exer 3/6 system will contain the following items:
(The tops of the supports are not shown for clarity)
1 - Left-Support and Pivot-Block with hardware:
o 2 - #6-32 pan-head screws, 1-5/8” long.
o 2 - #6 flat washers.
o 2 - #6 lock-nuts, 5/16” head.
1 - Right-Support with Pivot-Block.
o 2 - #6-32 pan-head screws, 1-5/8” long.
o 2 - #6 flat washers.
o 2 - #6 lock-nuts, 5/16” head.
1 - Bottom-Brace with hardware:
o 2 - 1/4"-20 socket-cap screws, 1-1/4” long.
o 2 - 1/4" flat washers.
1 - Top-Brace with hardware:
o 2 - 1/4"-20 socket-cap screws, 1-1/4” long.
o 4 - 1/4" flat washers.
o 2 - 1/4"-20 acorn nuts.
1 - Actuator-Brace with hardware:
o 2 - #10-24 socket-shoulder screws, 3-1/2” long.
o 2 - 1/4"ID, 1/2"OD x 1” long bronze bushings.
o 2 - 1/4"ID, 1/2"OD x 1/4" long spacers.
o 2 - 1/4"ID, 1/2"OD x 1-1/4” long Exer 3/6 bushings.
1 - 3/16” Hex Key.
1 - 1/8” Hex Key.
You will also need:
7/16” open-ended wrench (comes supplied with the Exer 3/6 treadmill).
Cross-point (Phillips) screwdriver and 5/16” open-ended wrench or pliers.
2-foot (60cm) bubble level (optional)
To Next Page
