3.2 Connecting the Components
 Place the Incline Controller near the Incline Apparatus.

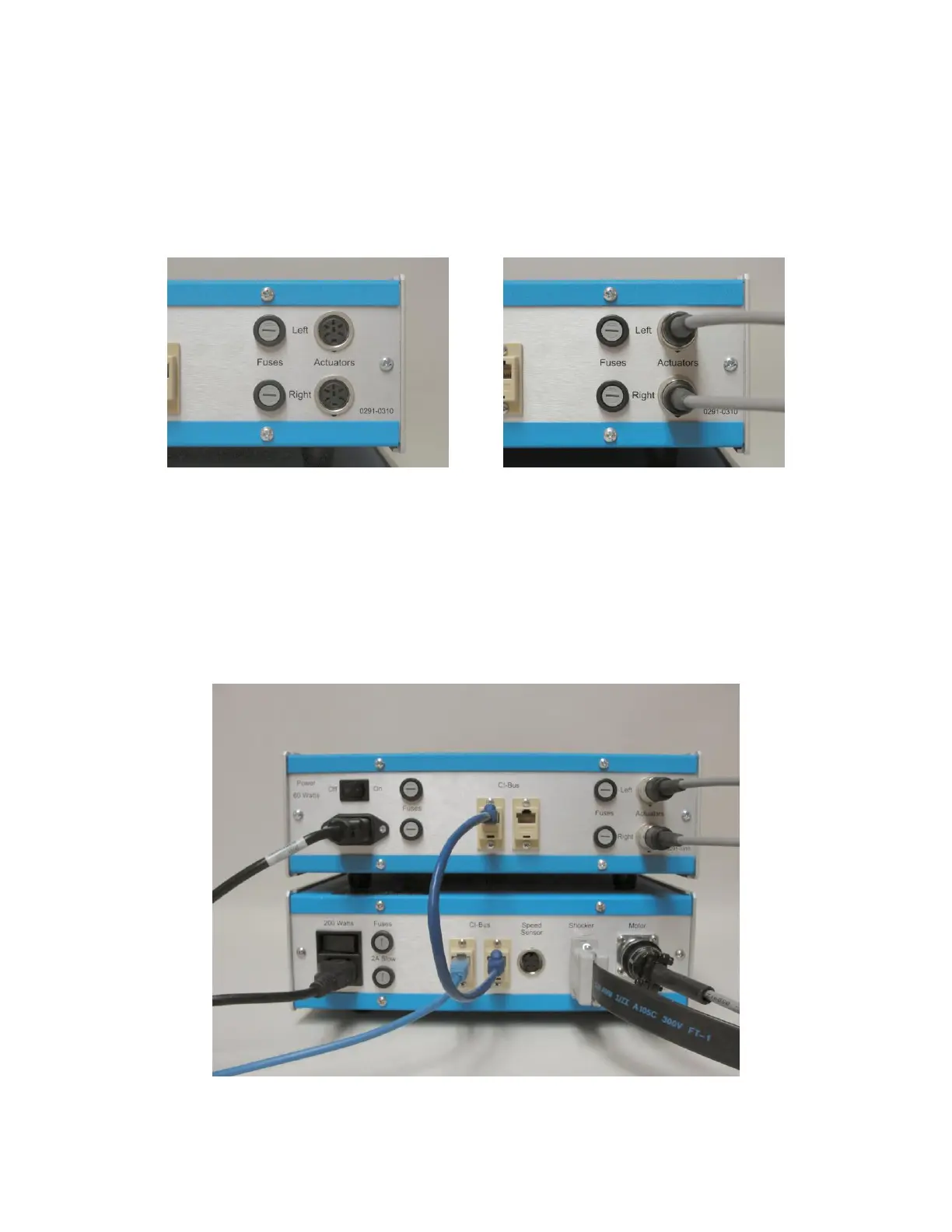

 Using the two 6’ motor extension cables, connect the left and right-actuators to the “Left” and
“Right” actuator ports on the rear of the controller.
 Connect the AC power cord to the rear panel AC power receptacle of the Incline Controller and insert
the other end into an appropriate AC outlet.
3.2.0 With the Treadmill Controller
It is recommended to place the controller cabinets on top of each other. In this example, the lighter Incline
Controller is atop the heavier Treadmill Controller.
 Setup all of the controllers as indicated in their respective manuals.
 Using the blue CI-Bus data cable, connect the available “CI-Bus” port of the Treadmill Controller to
one of the “CI-Bus” ports on the Incline Controller.
