SECTION 3
HARDWARE SETUP
It is recommended to use an AC power strip to provide a common short-distance access to AC power for all
components of the Treadmill, Incline and other systems. Most AC power strips incorporate a master switch
that can switch on and off the AC power to the entire system and protect against electrostatic discharge. It
also provides a beneficial common ground between all components to help prevent unintentional ground
loops.

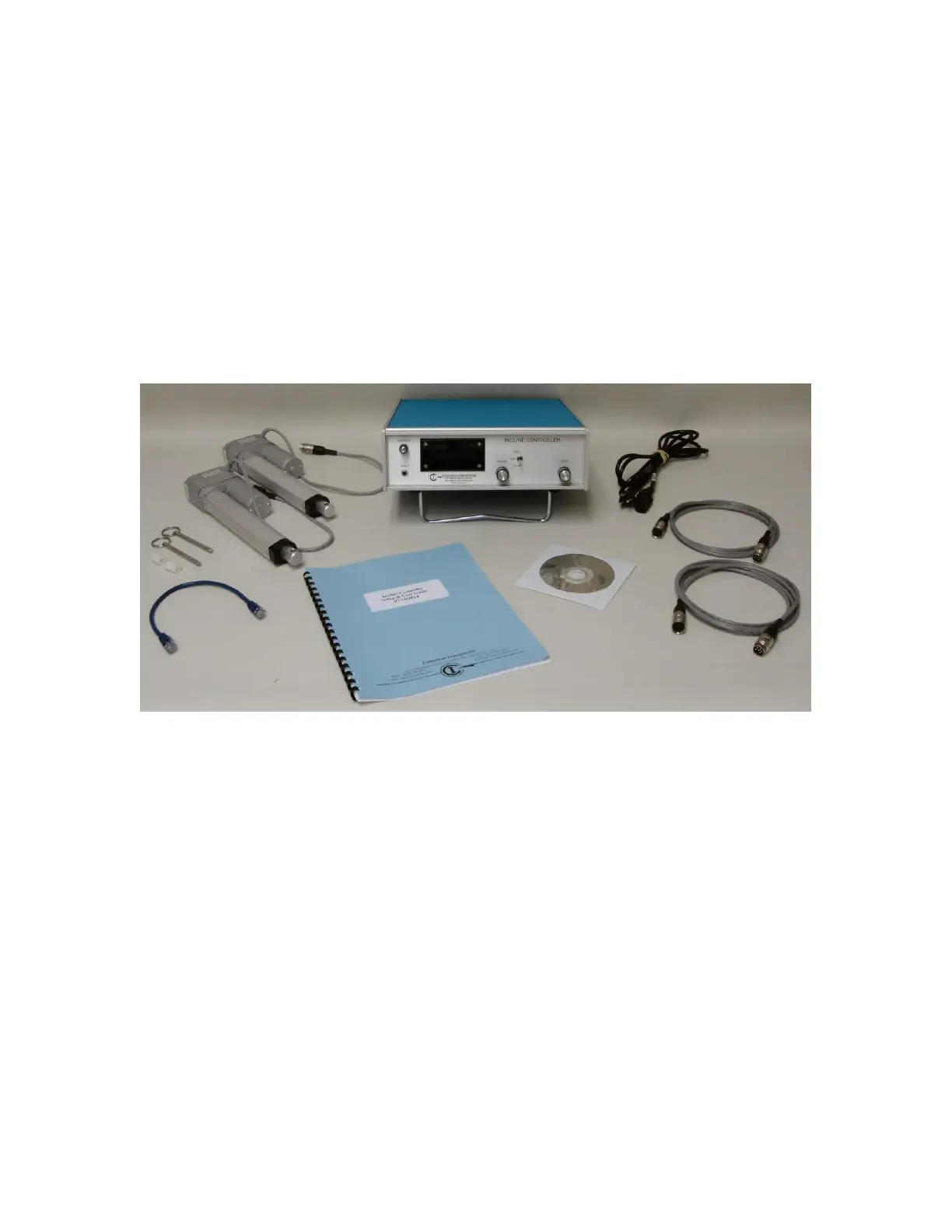

The Automated Incline system will contain the following common items:
1 - Incline Controller with power cord.
2 - motor extension cables.
2 - linear-actuators with hardware:
o 2 - 1/4" x 3” quick release pins.
o 2 - 1/4"ID, 1/2"OD x 1” long spacers.
1 - instruction manual.
with computer control:
o 1 - Software CD-ROM.
o 1 - 1’ (30cm) CI-Bus data cable.
