3.4 Connecting the Components

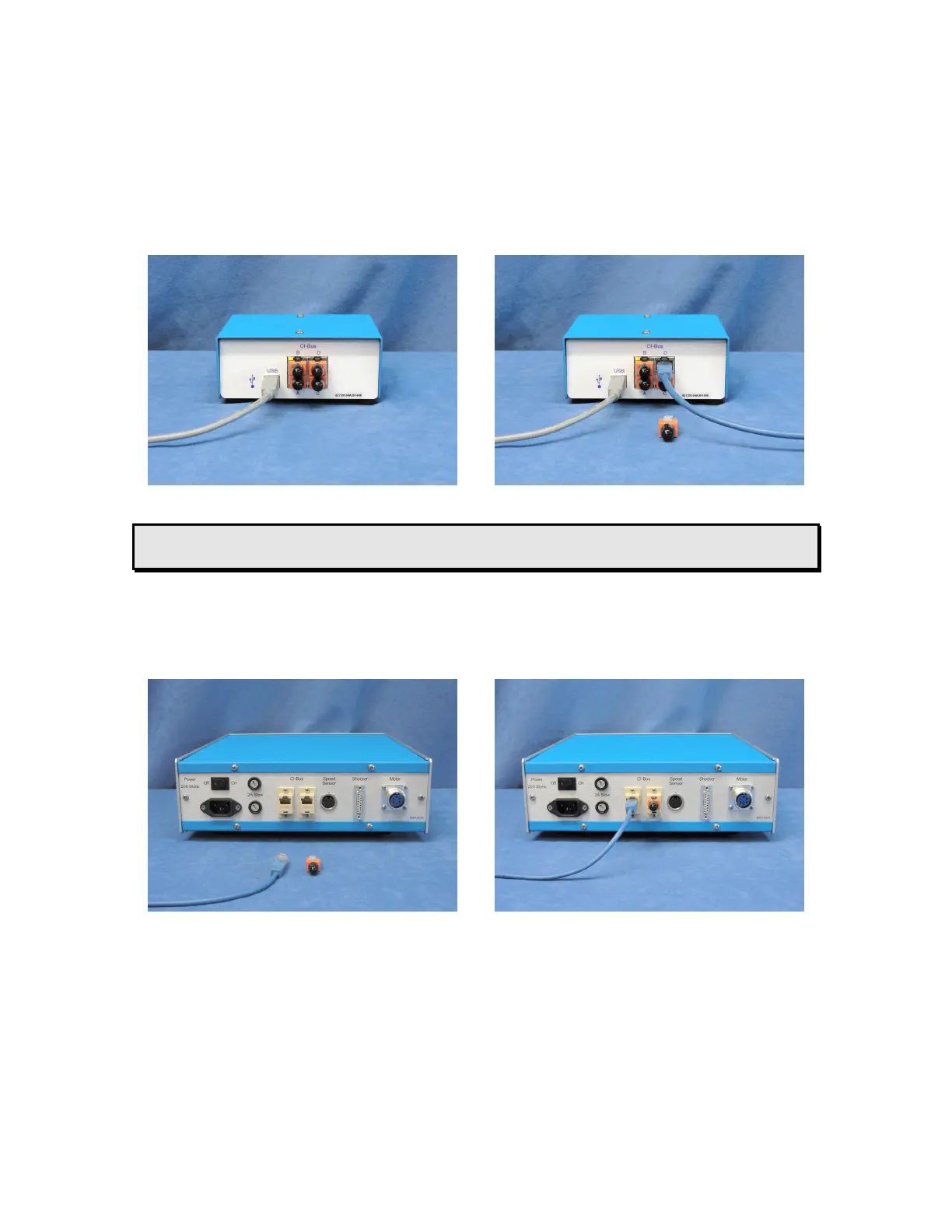

Place the CI-Bus Hub interface near the host computer (not shown). Using the USB cable, connect the
interface to the host computer. The power indictor (upper left LED of port “B”) should be lit
continuously.
Remove the orange terminator from one of the ports and replace it with one end of the CAT5 network
cable.
DO NOT LOSE THE TERMINATOR!
It must be installed in the open port of the last device on the CI-Bus.
Connect the other end of the CAT5 network cable to one of the “CI-Bus” ports of the Treadmill
Controller.
Install the orange terminator into the other “CI-Bus” port.
