3.4 Connecting the Components (continued)

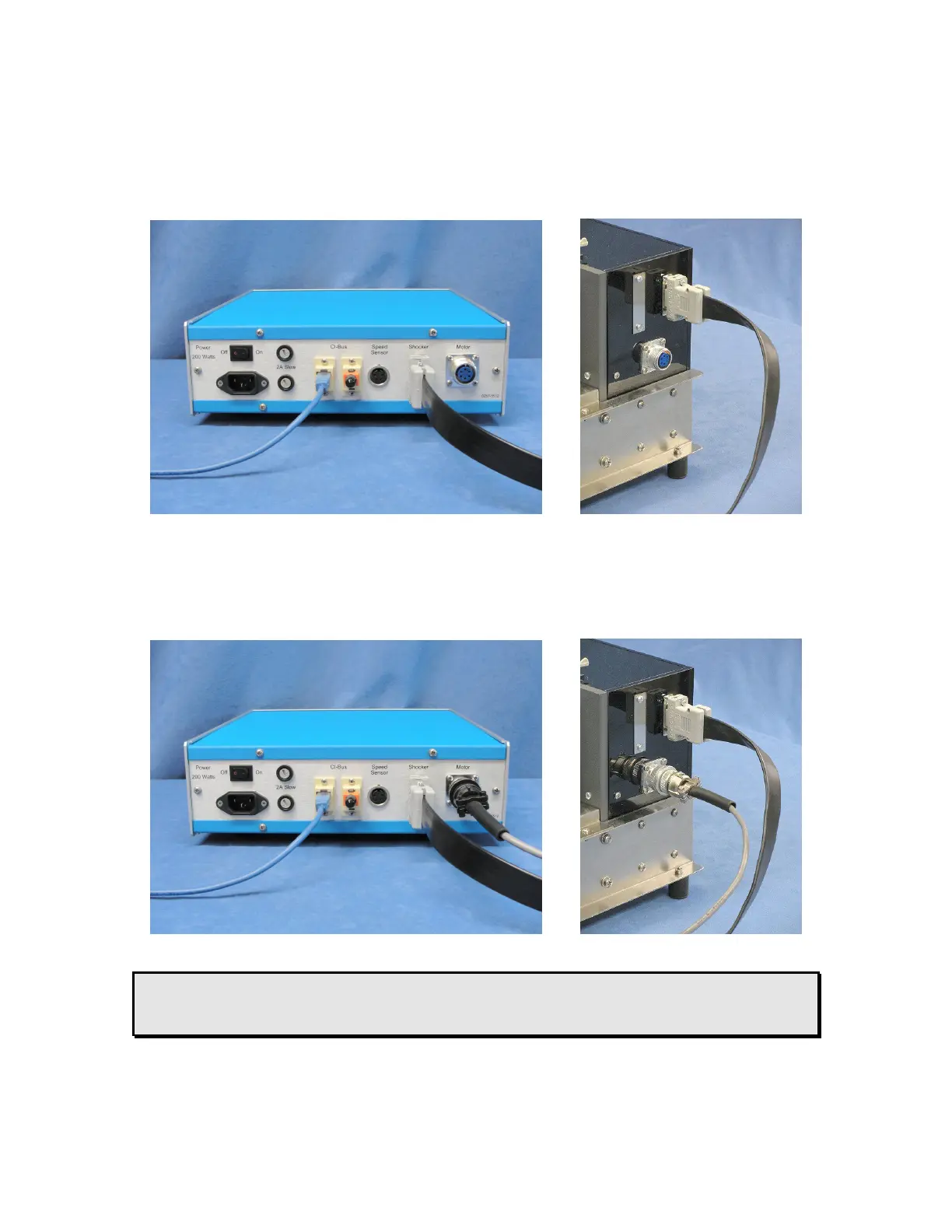

 Connect one end of the 15-pin shock cable to the rear “Shocker Box” port of the Treadmill Controller.

 Connect the other end of the 15-pin shock cable to the 15-pin D-Sub jack on the Exer 3/6 Treadmill.

 Use the common screwdriver to secure the 15-pin connectors to the ports.

 Connect one end of the motor cable to the “Motor” port of the Treadmill Controller.

 Connect the other end of the motor cable to the 6-pin Amphenol jack on the Exer 3/6 Treadmill.

 Connect the AC power cord to the rear panel AC power receptacle of the Treadmill Controller and

insert the other end into an appropriate AC outlet.

DO NOT switch on the Treadmill Controller at this time!

Refer to SECTION 4.0 – Stand-Alone General Exercising without the Computer

or SECTION 5.0 – Performing a PC-controlled Experiment for further instructions.
