6.6 AutoCal Speed
This is used to perform an automatic belt speed and odometer distance calibration. You must have the
Calibration Wheel to successfully perform this function.
Press the “ODOMETER RESET” button to select the option. The message will display
“Run to Start…”
Move the “TREADMILL BELT” toggle from “STOP” to “RUN”. The treadmill belt will move at a
speed around 50.0 meters/minute. The display will show: “Stop to Cancel..” and a 15-minute timer
which will begin to count down. The automatic calibration procedure can be stopped any time by
returning the “TREADMILL BELT” toggle switch back to “STOP”.

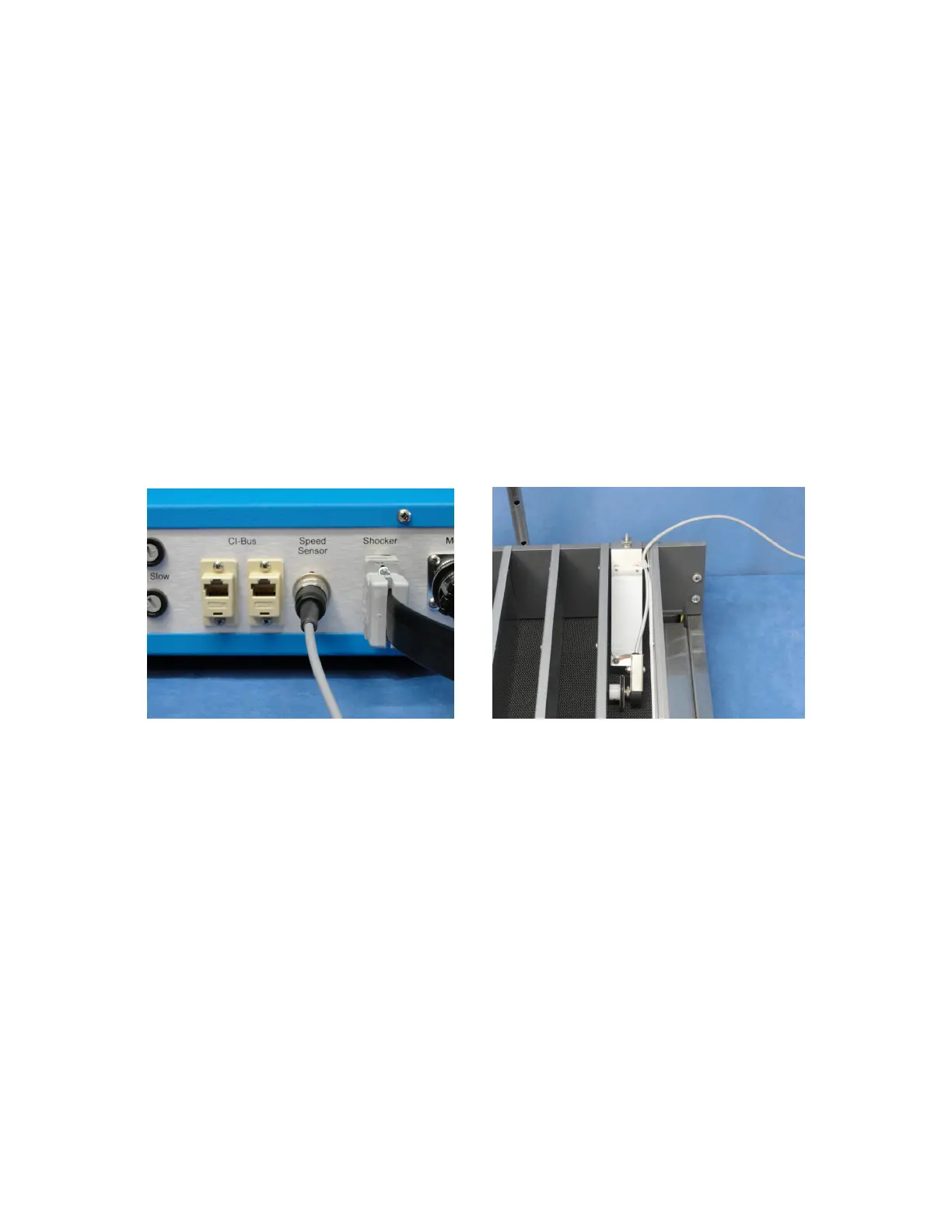

Now connect the Calibration Wheel to the Treadmill Controller.
Remove the thumbnuts and remove the treadmill cover and lid.
Place the Calibration Wheel over the threaded stud and secure with one thumbnut. Be sure the wheel
is aligned parallel to the running belt. The Calibration Wheel comprises a bent metal frame and
therefore may not always parallel with the treadmill lane when the wheel is properly aligned.
After the count-down time expires, the Treadmill Controller will check for a speed output from the
Calibration Wheel. If detected, then the calibration procedure will continue, else the following message is
displayed: “External Wheel Not Detected…”.
Verify the connection. If all appears correct, try cycling the AC power and start the calibration again.
Else, contact Columbus Instruments for help. Once an output has been detected the screen will display
“Press Odometer Reset…”.
Press the “ODOMETER RESET” button on the front panel of the Treadmill Controller to continue.
The treadmill controller will calibrate the low speed of 10.0 meters/minute and then the high speed of 100.0
meters/minute, each within the span of 3 minutes 17 seconds). Lastly, it will calibrate the odometer
distance in one minute and display the measured counts from the motor odometer.
Press the “ODOMETER RESET” button to save the new calibration settings. Then the screen will
display “Stop to Finish…”
Return the “TREADMILL BELT” toggle switch back to “STOP”.
