Columbus Instruments Exer 3/6 User Manual
5
of 1
of 1 rating
127 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
19

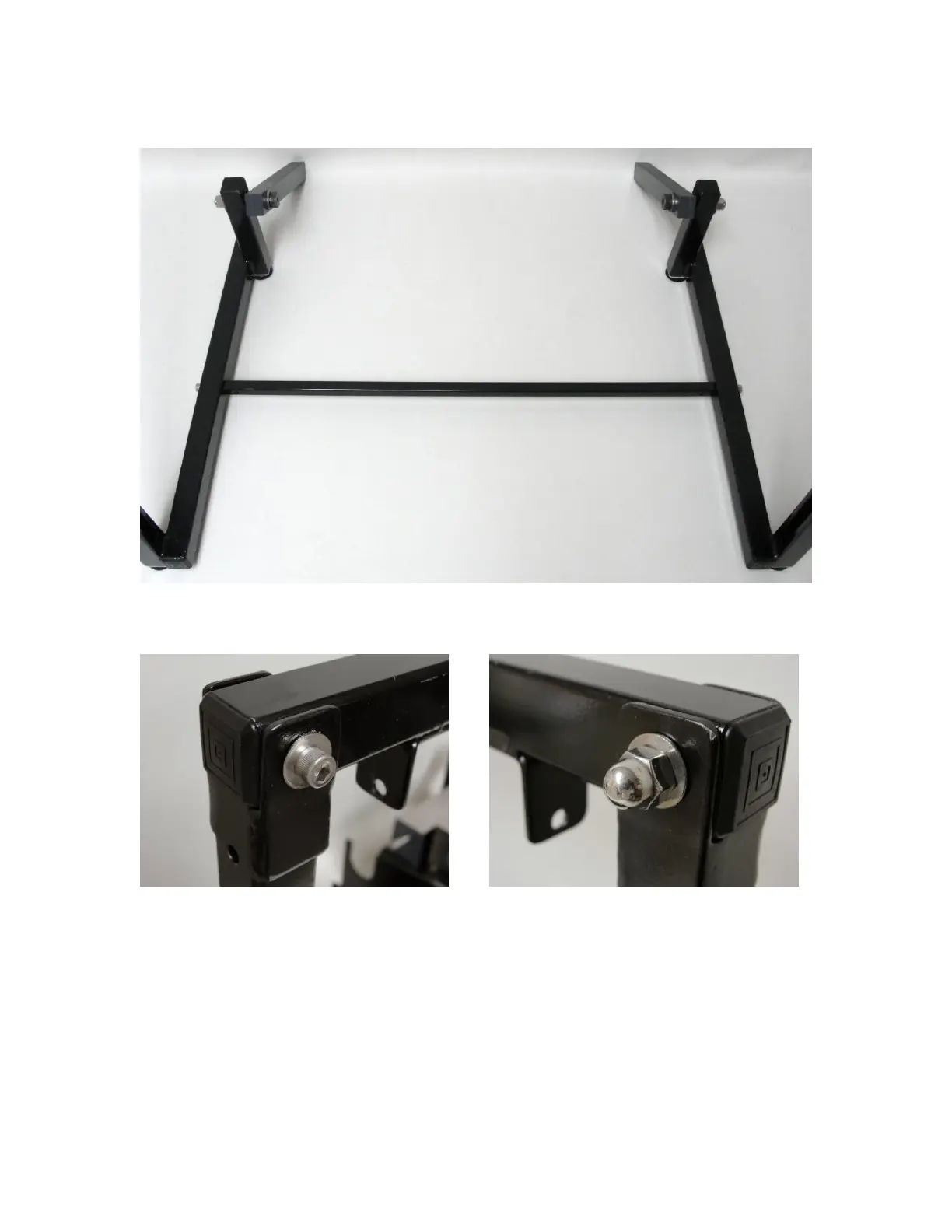

Repeat the above proce
dure for the right
-support.
Attach the top-brace to
the suppo
rts as shown. Again, DO NOT
fully tighten the scre
ws & nuts.
Front View
Back View
106
108
Table of Contents
Table of Contents
5
Table of Contents
3
Introduction
7
System Overview
7
System Specifications
9
Exer 3/6 Treadmill
9
Optional Electric Stimulus
9
Optional Air-Puff Stimulus
9
Optional Downhill Running Adapter
9
Treadmill Controller
10
Optional Calibration Wheel
10
Minimum Computer Specifications
10
CI-Bus Hub Interface
10
Computer Setup
11
Treadmill Software Installation
11
CI-Bus Hub Driver Installation
13
Hardware Setup
15
Typical Item Inventory
15
Assembling the Exer 3/6 Treadmill
18
Downhill Running Adapter
23
Assembling the Air-Puff Stimulus
28
3.3.0 Adjusting the Capacitive-Touch Sensitivity
31
Connecting the Components
32
Setting the Angle of Inclination or Declination
34
Stand-Alone General Exercising Without the PC
35
Stand-Alone Initialization
35
User Menu Settings
36
Loading the Subjects
38
Controlling the Treadmill
39
4.3.0 Odometer Reset
39
4.3.1 Run
39
4.3.2 Accel
40
4.3.3 Stop
40
Performing a PC-Controlled Experiment
41
Treadmill Controller Setup
41
Treadmill Shock Detection Setup
42
Incline Controller Setup
42
Treadmill Software Initialization
43
No Devices Detected or Manually Configure the Port
44
Manual Experiment
45
Treadmill Settings
46
5.4.1 Shock Detect Settings
47
5.4.2 Incline Settings
47
5.4.3 Start Manual Experiment
48
Profile Mode Experiment
50
Treadmill Settings
51
5.5.1 Creating a Profile
51
5.5.2 Start Profile Mode Experiment
52
Treadmill Controller User Menu
55
Restore Defaults
56
Serial Number
56
Run-Time Meter
56
Run-Time Odometer
56
Unit ID
56
Baud Rate
57
Autocal Speed
58
Acceleration Settings
59
Operating Mode
60
Normal
60
Time Limited
61
Distance Limited
62
Exit
62
Treadmill Software Descriptions
63
Experiment >> Run
63
Manual Tab
64
Profile Mode Tab
65
Experiment View
65
Tools >> Device Scan
66
Adding Devices to the CI-Bus
67
Removing Devices from the CI-Bus
67
Window
68
Help
68
About
68
Maintenance
69
Treadmill Belt Tracking
69
Treadmill Belt Tension
70
Cleaning
70
Table of Contents
72
2 Installing Software
73
Removing the Software
76
3 Hardware Setup
77
Item Inventory
77
5 0 Troubleshooting
84
5.1 Hardware
84
Treadmill Diagnostics
85
Table of Contents
89
Introduction
91
System Overview
91
System Specifications
92
Incline Controller
92
Generic Incline Apparatus
92
Metabolic Mouse Incline Apparatus
92
Metabolic Rat Incline Apparatus
92
Exer 3/6 Incline Apparatus
93
Calculation of Data
94
Angle of Inclination
94
Rate of Change of Angle of Inclination
94
Software Setup
95
Treadmill Software Installation
95
Removing the Software
97
Hardware Setup
99
Metabolic Mouse/Rat
100
Exer
105
Leveling the Incline Apparatus
108
Connecting the Components
115
With the Treadmill Controller
115
With the Treadmill and Shock-Detection Controllers
116
System Initialization
117
Hardware Monitoring
117
Fuses
117
Motor Type
118
Motor Feedback
118
Positional Mismatch
119
Stop Mode
119
Run Mode
119
Step Mode
119
Computer-Controlled Experiment
121
Treadmill Software Initialization
121
Device Scan
122
Experiment Parameters
123
Manual Tab
124
Profile Tab
125
Maintenance
127
Cleaning
127
