47
5.4.3 Start Manual Experiment (continued)

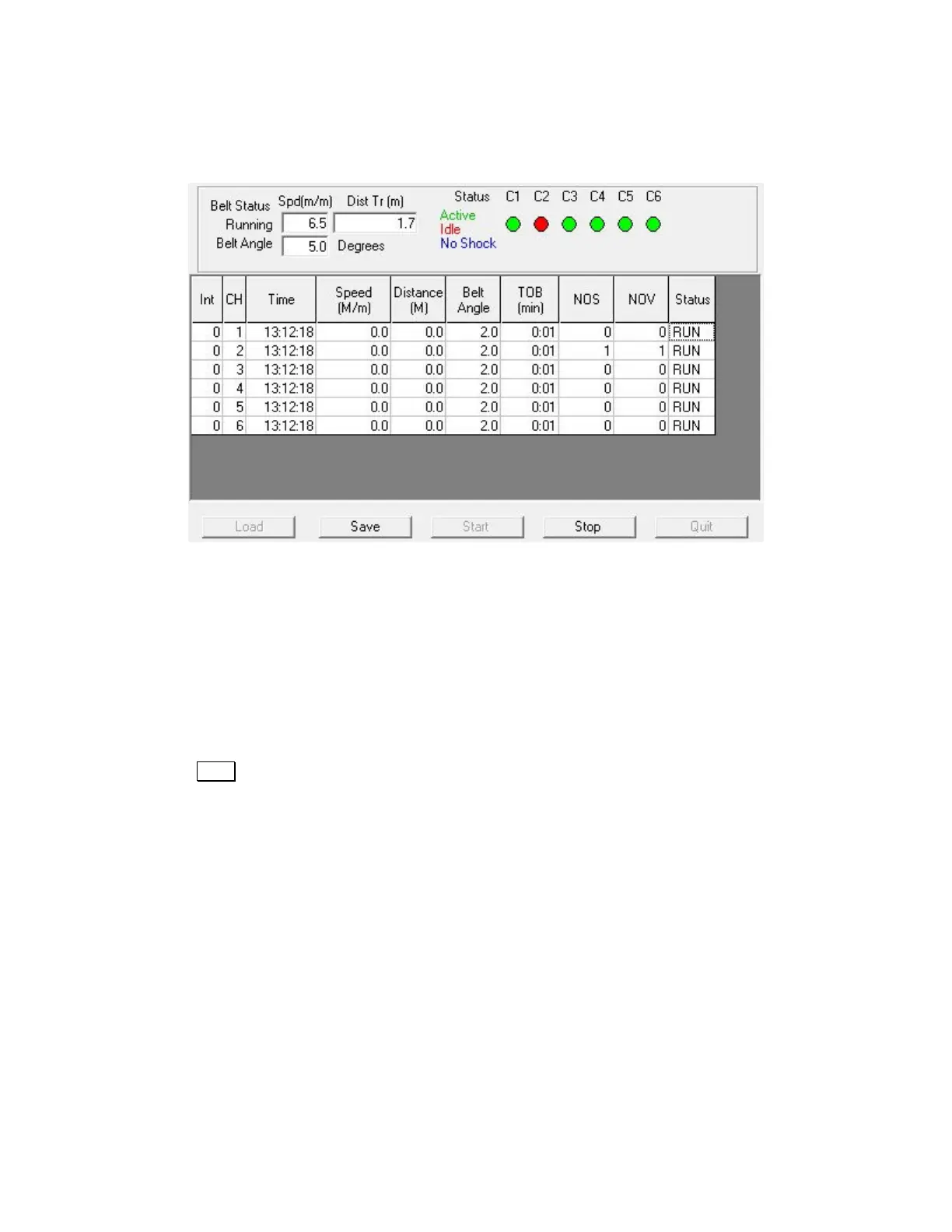

The Experiment window provides the following information while the experiment is running:
• Belt Status: “Idle” indicates the front panel switch is set to “STOP”
“Running” indicates the front panel switch is set to “RUN”
“Accel” indicates the front panel switch is set to “ACCEL”
• Spd(m/m): reports the current speed of the treadmill belt.
• Dist Tr (m): reports the total distance the treadmill belt has moved.
• Belt Angle: reports the current angle of inclination.
The grid below the status area reports the data collected for each interval of the experiment. The first
report, “Int: 0”, details the settings for each channel at the start of the experiment. The last interval is
the data at the termination of the experiment, which typically coincides with the last interval.
• Stop : used to manually terminate an experiment. Necessary when the experiment “Duration”
has been set to zero.
