5-4 Removal and Replacement Procedures - Desktop
5.4 Feet
Four rubber feet are mounted to the underside of the chassis. If necessary, remove the old feet and
scrape the residue of the old feet from the chassis using a small, flat-bladed screwdriver. To attach
replacement feet to the chassis, remove the protective strip from the adhesive on the back of the new
feet and press them into place.

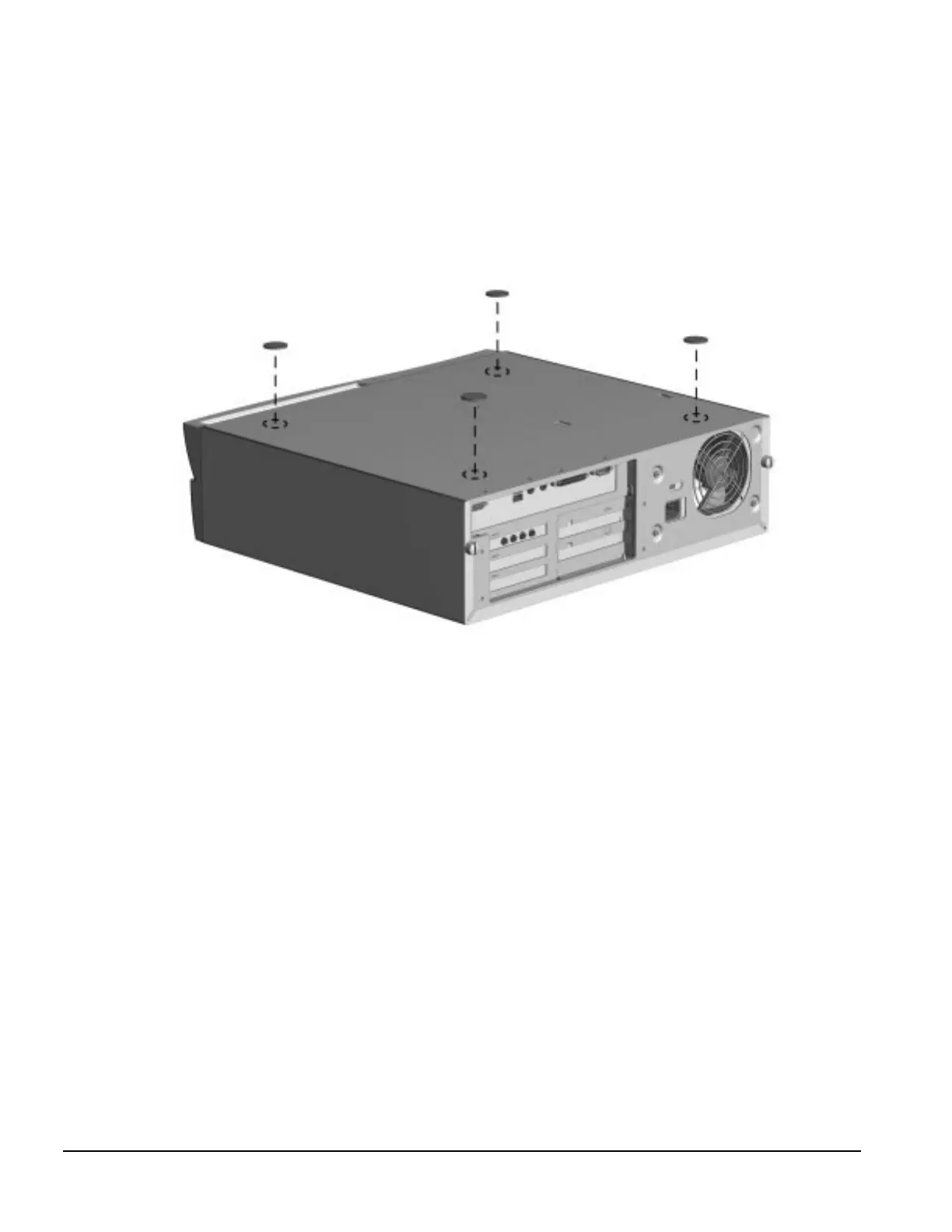

Figure 5-2.
Installing the Feet
