6-26 Removal and Replacement Procedures - Minitower
6.16.2 Power Button
To remove the power button, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the front bezel (Section 6.16.1).
3. Hold the front bezel in one hand with the inside surface towards you.
4. Pinch the two tabs of the power button together and push the button out of the front bezel. The
spring will follow the button out of the housing.

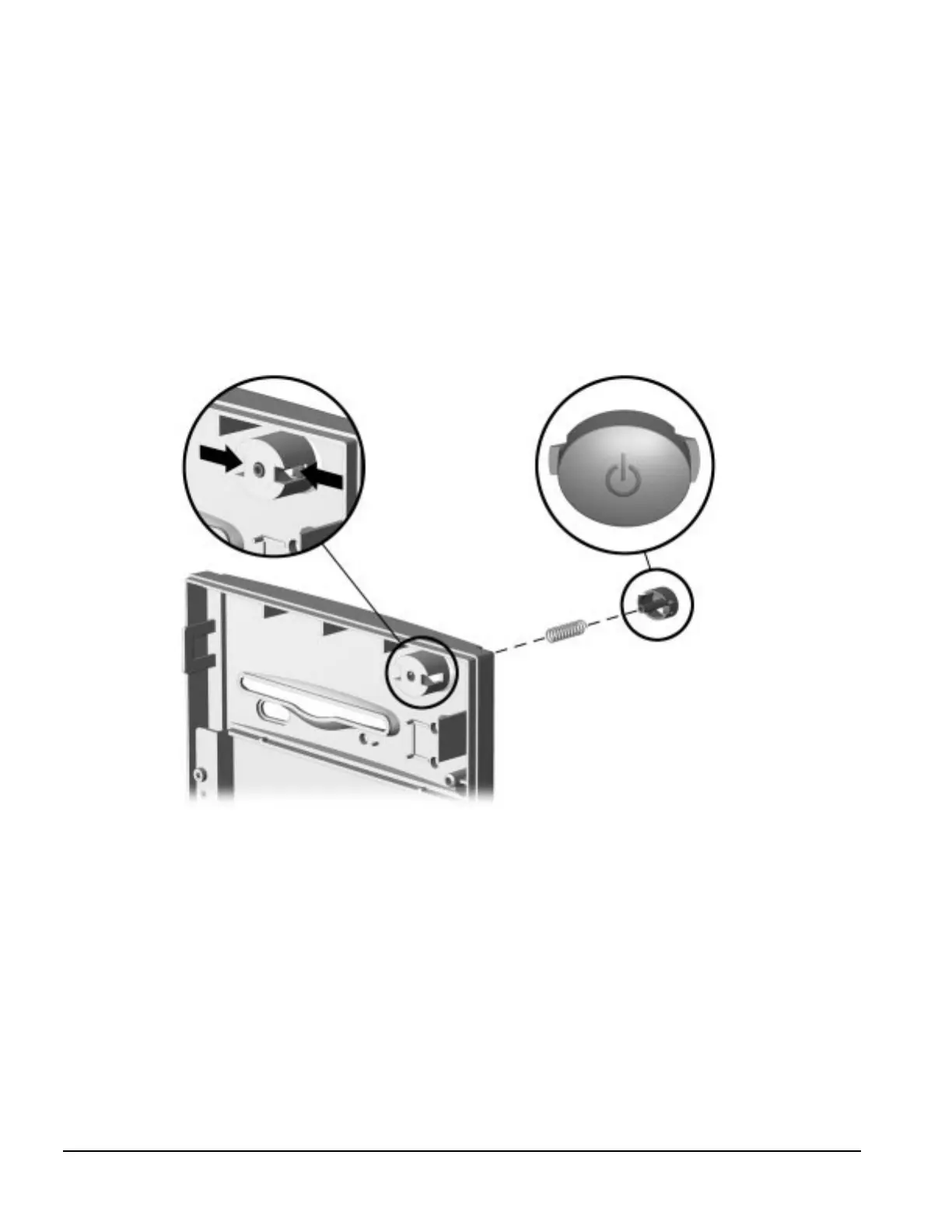

Figure 6-26.
Removing the Power Button
To replace the power button, reverse the above procedure.
When replacing the power button, be sure to use the button for a DC application as shown.
