Compaq Deskpro 2000 Series of Personal Computers 7-5
7.1.2 Switch Settings
The following figures and tables identify the switch settings for each processor frequency for the
Pentium and Pentium II system boards.
CAUTION:
Do not configure the system board to operate faster than the speed at which the processor is
rated. Doing this could result in unreliable operation or processor damage.

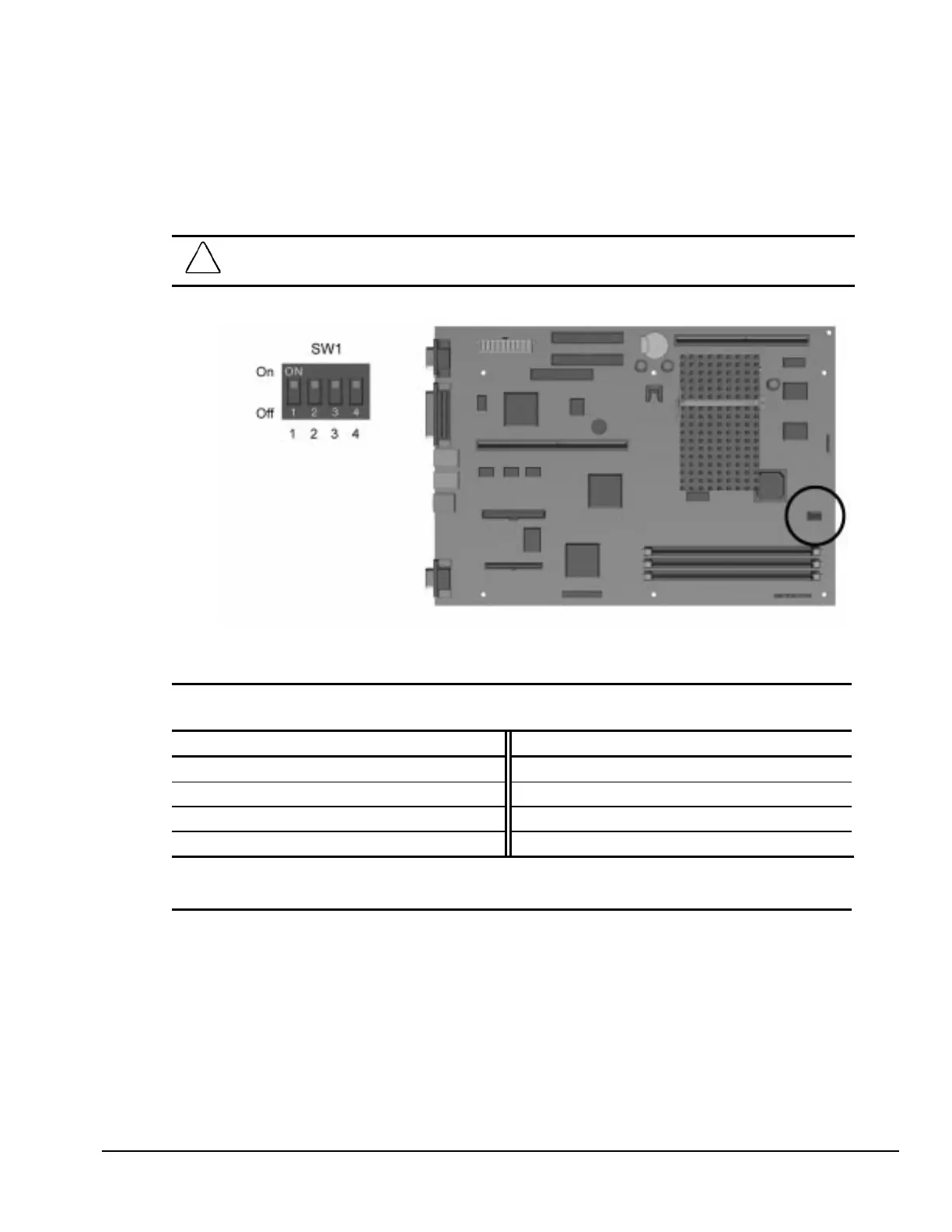

Figure 7-3.
SW1 Module Location, Pentium System Board
Table 7-3
Pentium System Board SW1 Settings
S1 S2 Bus Speed S3 S4 Processor Speed**
OFF OFF 60 OFF OFF 233
OFF ON 66* OFF ON 200
ON OFF 50 ON ON 166
ON ON reserved
* Standard bus speed for all Compaq Deskpro 2000 Series of Personal Computers.
** With bus speed set to 66 MHz.
