7-14 Jumper and Switch Information
7.3.3 Optional Ultra SCSI Hard Drive
Jumper Settings

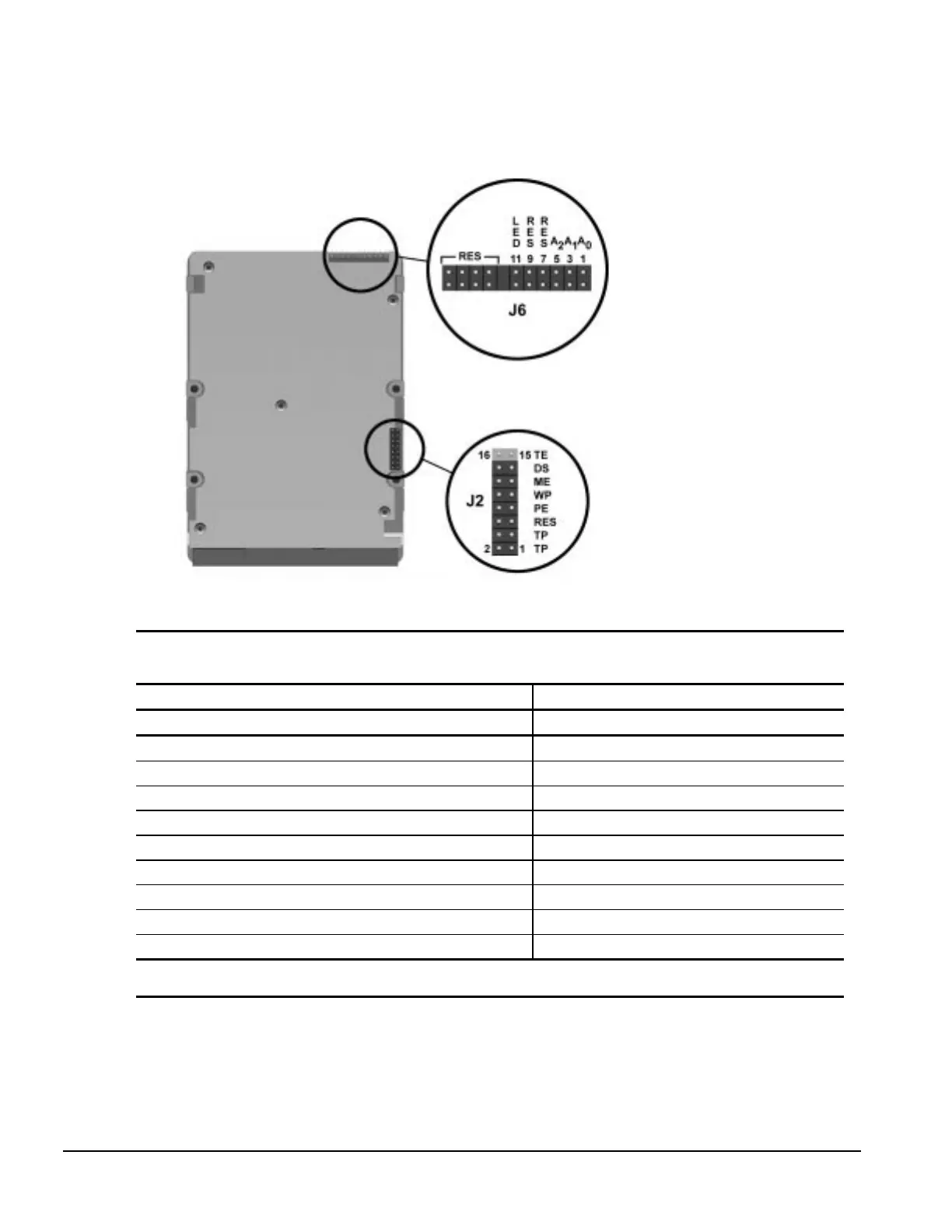

Figure 7-17.
2.1-GB Ultra SCSI Hard Drive Jumper Settings
Table 7-11
Jumper Settings
Jumper J2 Jumper J6
Definition Jumper Pins Definition A0 A1 A2
Enable Terminators TE 15 & 16 SCSI ID = 0 Off Off Off
Delay Motor Start DS 13 & 14 SCSI ID = 1 On Off Off
Enable Motor Start ME 11 & 12 SCSI ID = 2 Off On Off
Write Protect WP 9 & 10 SCSI ID = 3 On On Off
Disable Parity PE 7 & 8 SCSI ID = 4 Off Off On
Reserved RES none SCSI ID = 5 On Off On
Termination Power from Drive TP 3 & 4 SCSI ID = 6 Off On On
Termination Power to SCSI Bus TP 1 & 2 SCSI ID = 7 On On On
Termination Power from SCSI Bus 2 & 4
All other pins of Jumper J6 reserved for other uses.
