6-28 Removal and Replacement Procedures - Minitower
6.16.4 Compaq Logo
To remove the Compaq logo from the front bezel, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the front bezel (Section 6.16.1).
3. From the inside of the front bezel, use a small screwdriver at the hole shown in the figure to push
the logo out of its recess.
4. Clean the recessed area with a clean, dry cloth.
5. Remove the protective paper from the back of the replacement logo and press the logo into place.

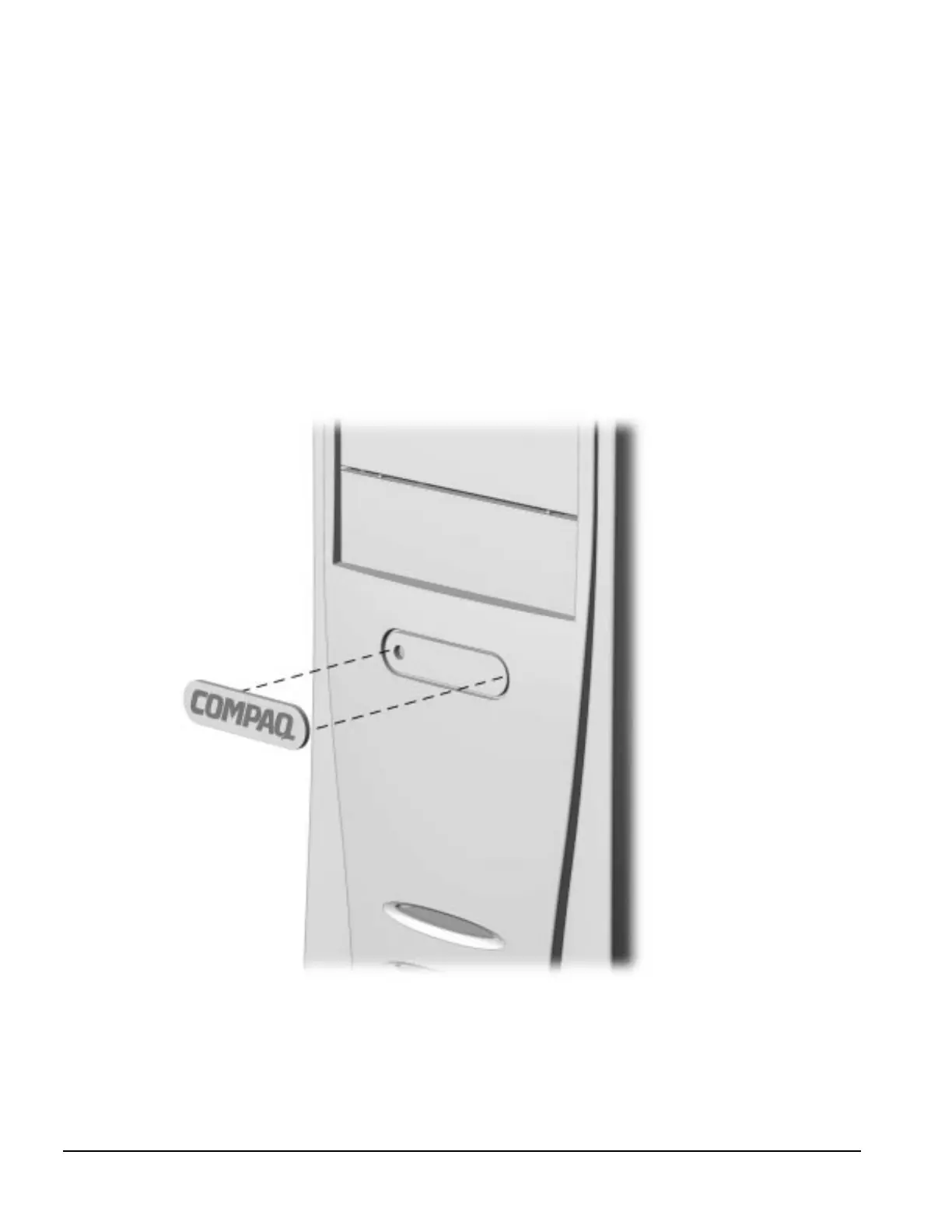

Figure 6-28.
Replacing the Compaq Logo
If the original logo is missing, complete steps 4 and 5 to install a replacement logo without having to
remove any part of the computer.
