6.6 Exposing the Chassis
6.6.1 Access Panel
To remove the access panel, complete the following steps:
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the thumbscrews at the rear of the computer to release the panel. You may need a flat-
bladed screwdriver to loosen a stubborn screw.
If the computer has a cable lock mechanism installed, refer to Section 6.5 for removal procedures.
3. Grasp the rear of the panel, pull it back about two to three inches (5 to 7 cm), pivot the top of the
access panel out about one inch (2.5 cm), and lift the cover from the computer.

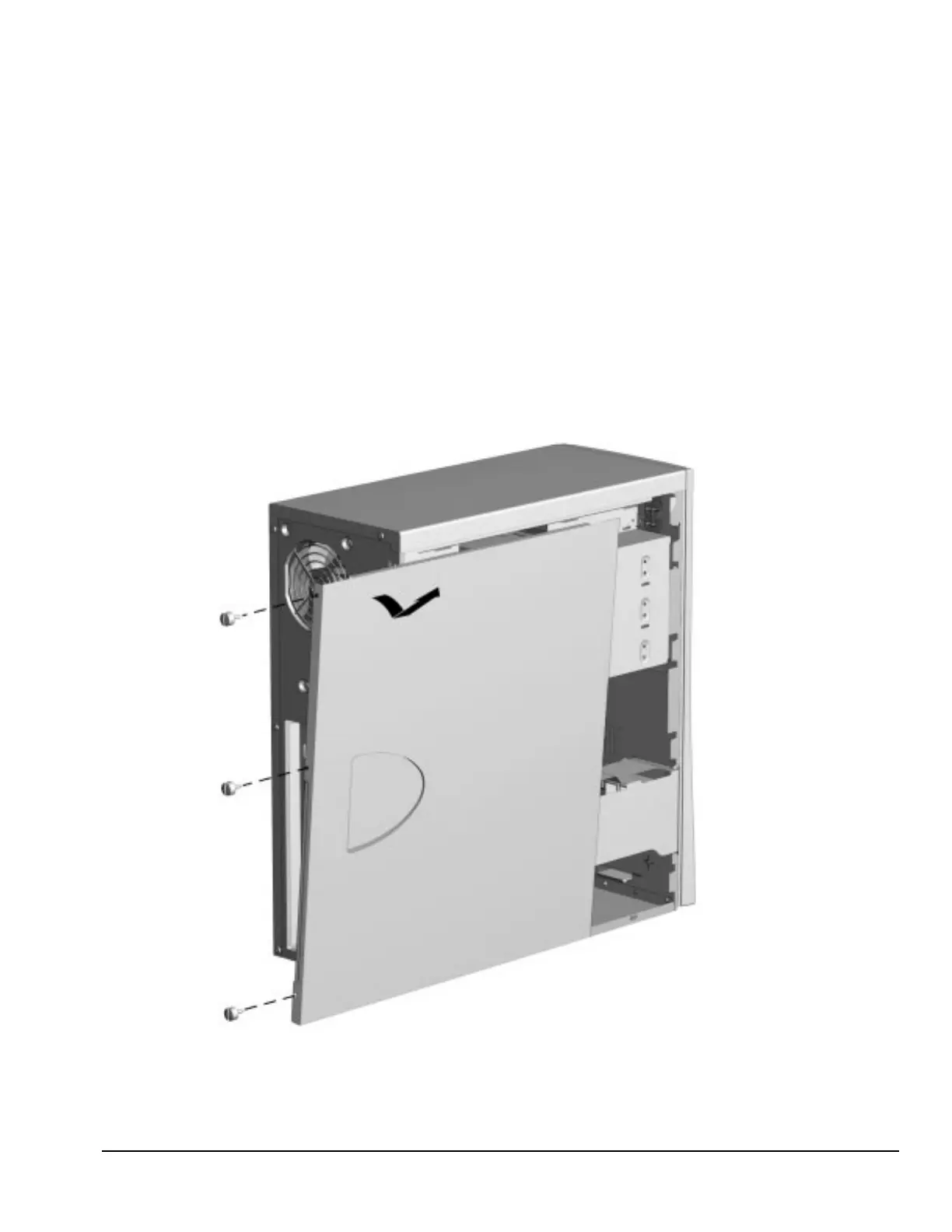

Figure 6-4.
Removing the Access Panel
To replace the cover, reverse the above procedure.
