Compaq Deskpro 2000 User Manual

6-10 Removal and Replacement Procedures - Minitower
6.9 Expansion Board Guide
To remove the expansion board guide, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the riser brace (Section 6.7).
3. Remove the expansion boards (Section 6.8).
4. Grasp the board guide firmly, press in on the two tabs 1 in the center front of the board guide,
and slide it to the right 2 to unsnap it from the front of the riser brace.

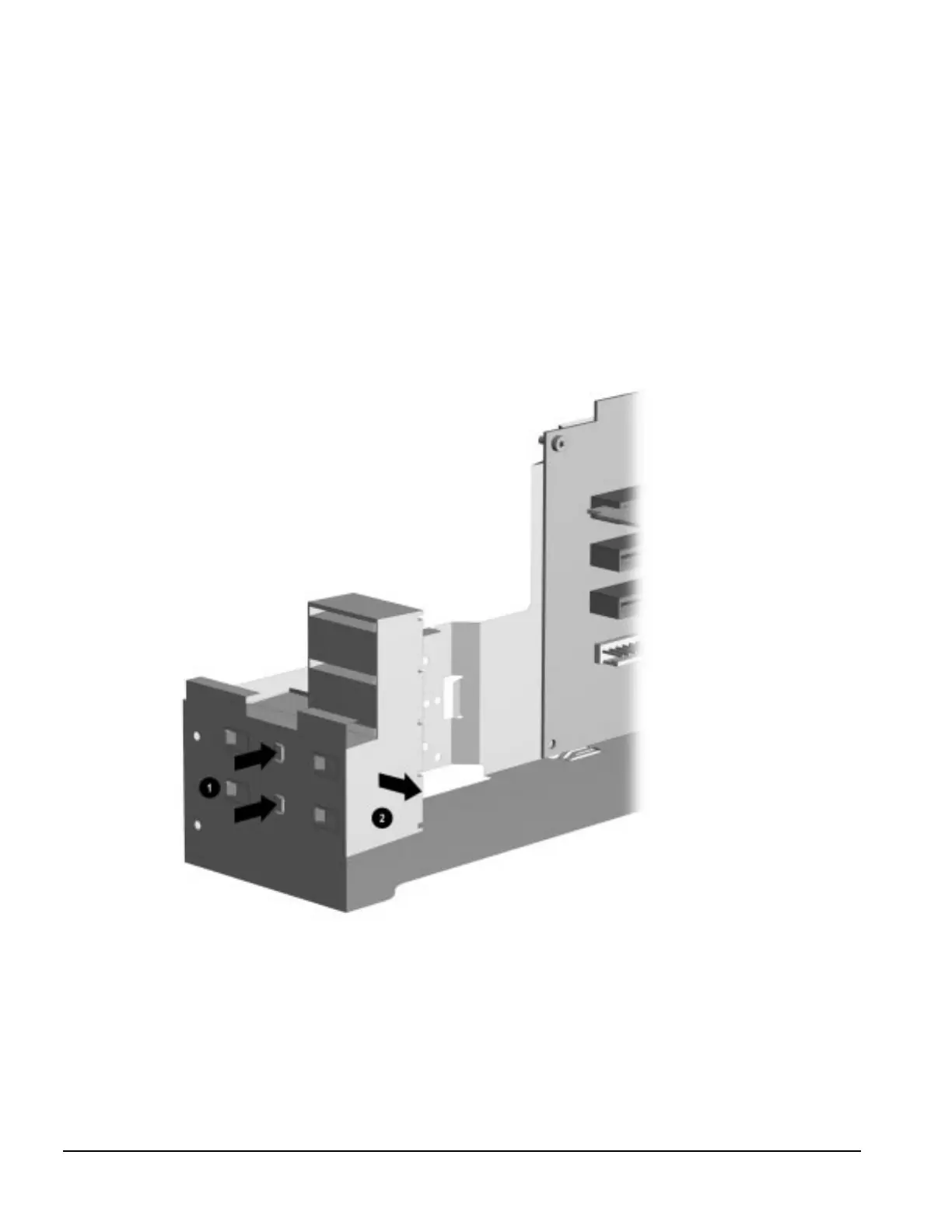

Figure 6-10.
Removing the Expansion Board Guide
To replace the expansion board guide, reverse the above procedure.
