Compaq Deskpro 2000 User Manual

Compaq Deskpro 2000 Series of Personal Computers 6-17
6.12.3 Cache Memory (Pentium System Only)
To install an optional cache board onto the system board, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the riser brace (Section 6.7).
3. Install the cache memory board 1 into the cache connector 2 on the system board.
✎
Only use Compaq spare part number 278017-001.

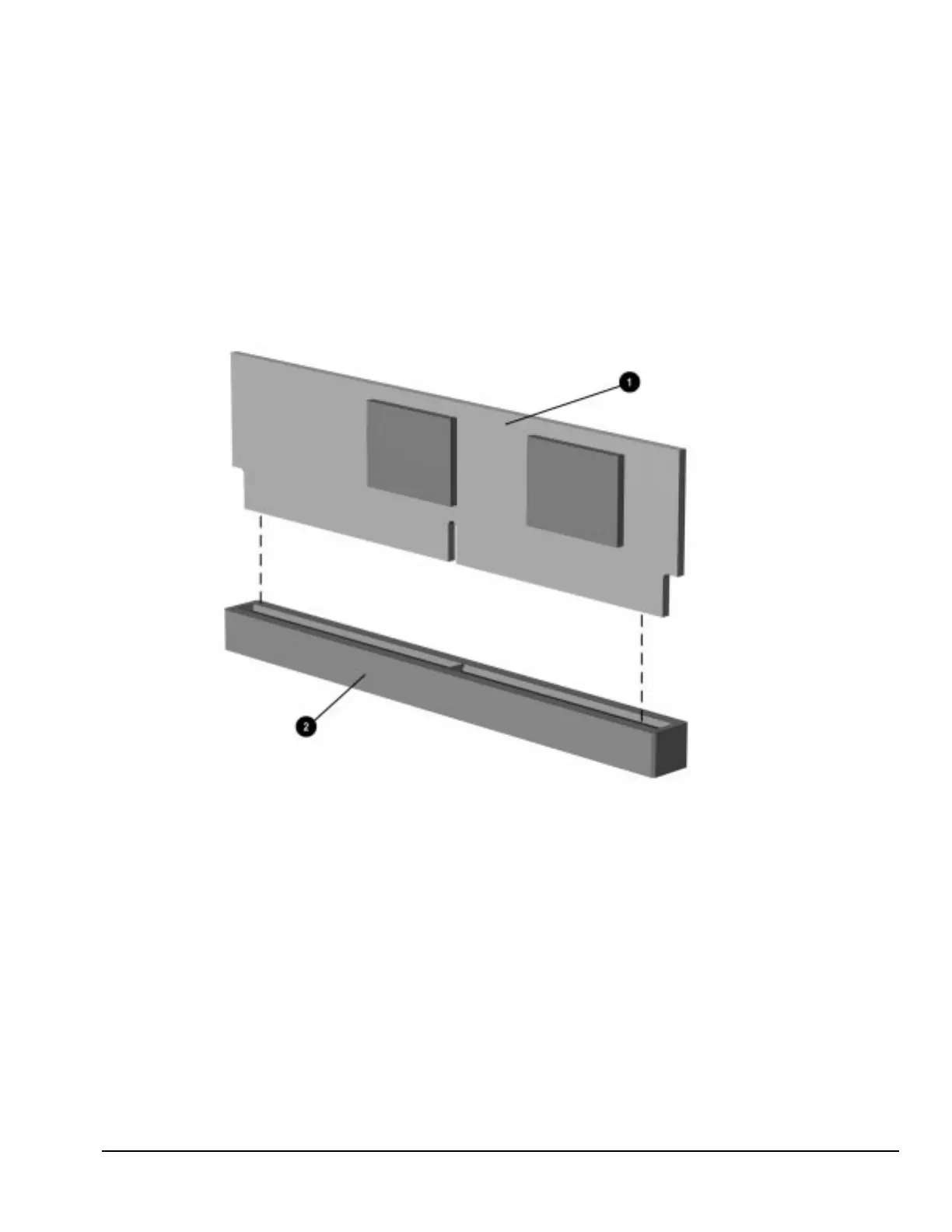

Figure 6-16.
Installing the Cache Memory Board, Pentium System Board
✎
For the location of the cache memory socket on the Pentium system board, see Chapter 7.
4. Install the riser brace.
5. Replace the access panel.
