Compaq Deskpro 2000 Series of Personal Computers 5-7

5.7 Speaker

To remove the speaker, complete the following steps:

1. Remove the system unit cover (Section 5.6).

2. Disconnect the speaker cable from the audio expansion board.

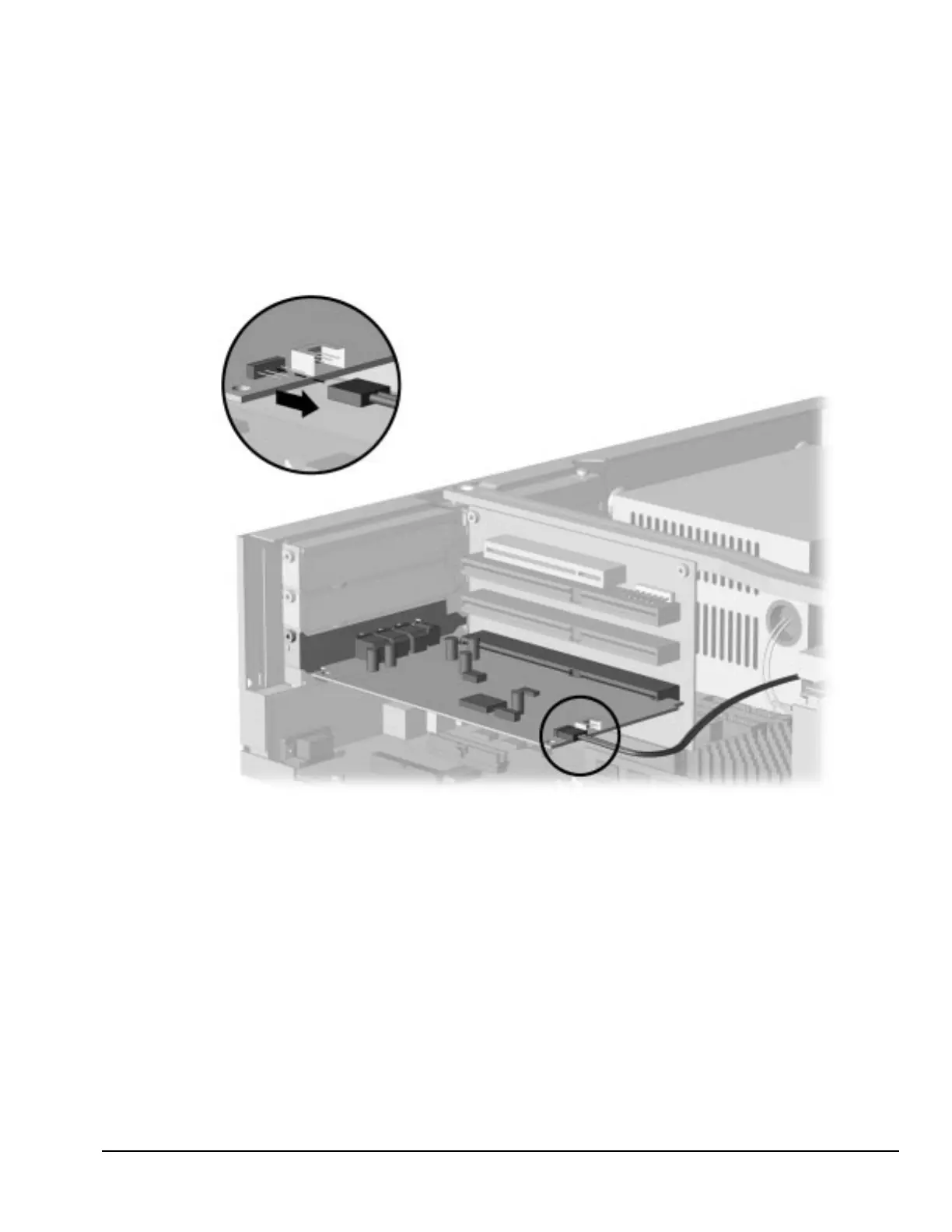

Figure 5-5.

Disconnecting the Speaker Cable from the Audio Expansion Board
