Compaq Deskpro 2000 Series of Personal Computers 5-23
5.14 Front Bezel Assembly
The front bezel assembly consists of the front bezel, the power button, and the bezel blank.
5.14.1 Front Bezel
The front bezel must be removed from the chassis before removing or installing the power supply or
any of the mass storage devices. It is attached to the computer chassis with release latches that are
integrated into it. To remove the front bezel, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. From the inside of the chassis, push in the release latches 1 and push the bottom of the bezel
out 2 and away from the chassis.
3. Slide the front bezel up to separate it from the chassis.

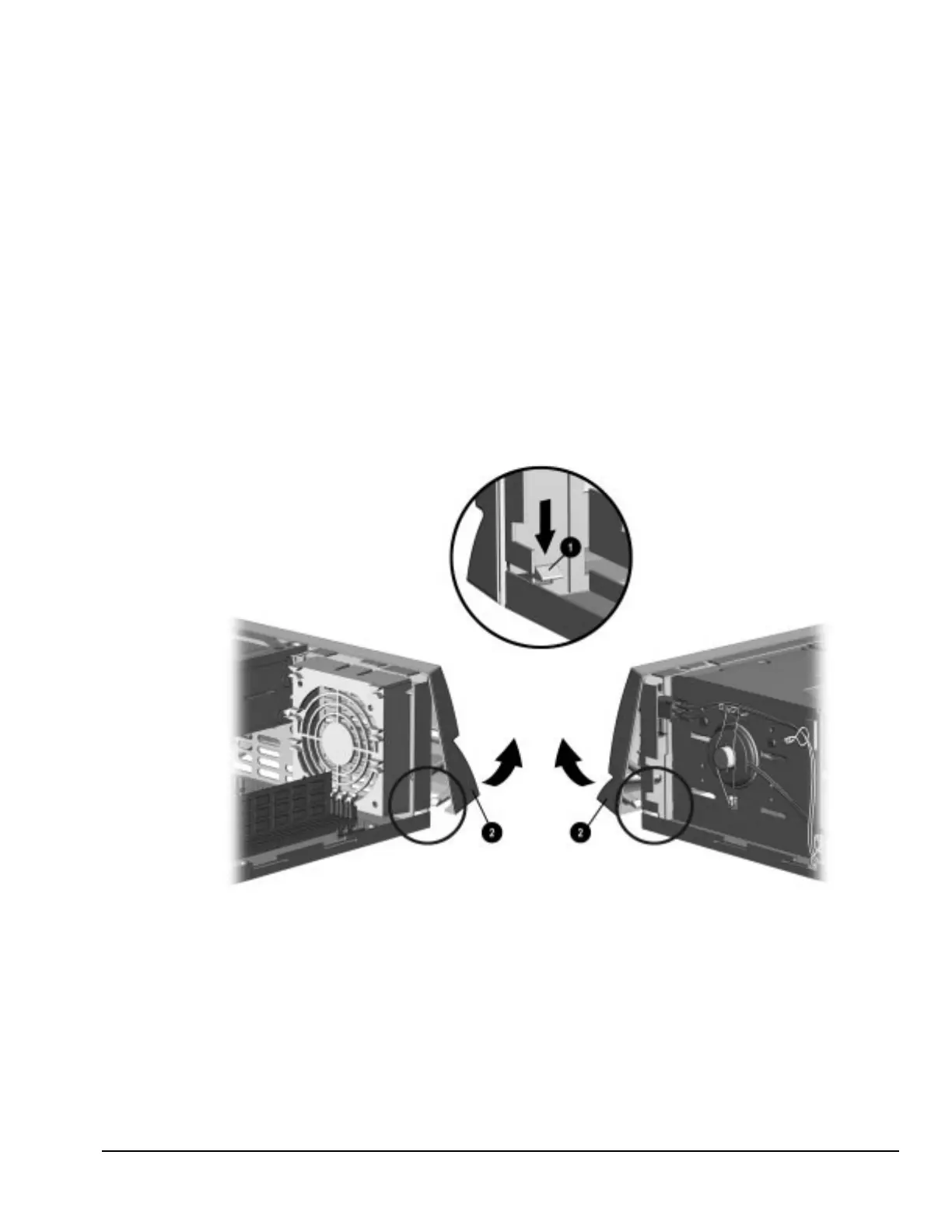

Figure 5-21.
Removing the Front Bezel
To install the front bezel, reverse the above procedure. Ensure that the hinge points at the top of the
bezel and the release latches at the bottom of the bezel are properly positioned before latching the
bezel into place.
