7.6 Diskette Drive
IA
1DRV
2CSL
2MST
CS
MA
SL
MD0
120 MB Floppy Drive
Assembly Number 184932

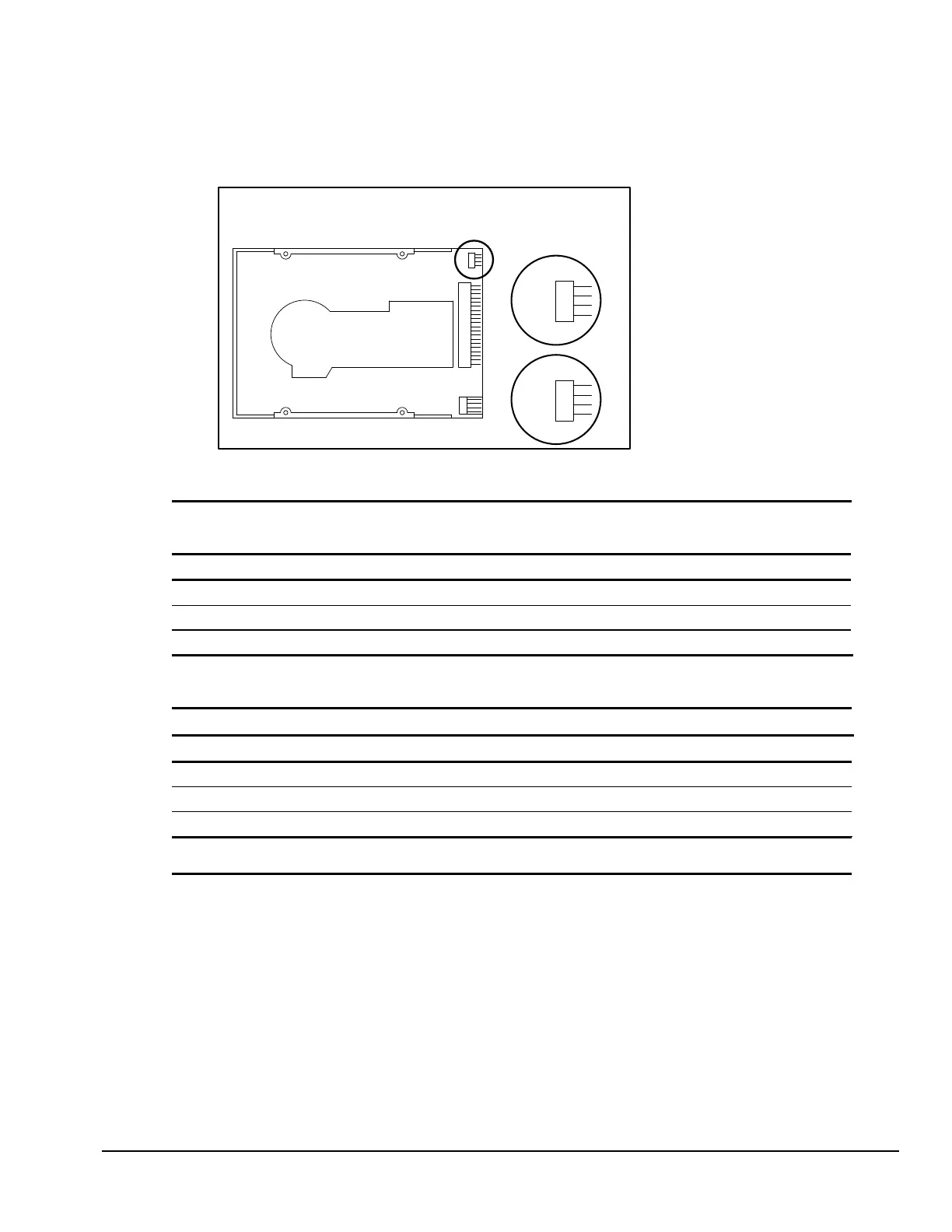

Figure 7-24.
LS-120 Diskette Drive Jumper Settings
Table 7-17
Jumper Settings (Top Insert)
Setting IA 1DRV 2CSL 2MST
Cable Select Off Off On Off
Device 0 (Primary) Off Off Off On
Device 1 (Secondary)
Off Off Off Off
Jumper
IA
is for factory use only.
Jumper
1DRV
does not need to be used.
Jumper Settings (Bottom Insert)
Setting MDO CS SL MA
Cable Select Off On Off Off
Device 0 (Primary) Off Off Off On
Device 1 (Secondary)
Off Off On Off
Jumper
MDO
is for factory use only.
