Compaq Deskpro 2000 - Optional Ultra ATA Hard Drives Jumper Settings

7-16 Jumper and Switch Information
7.3.4 Optional Ultra ATA Hard Drives
Jumper Settings

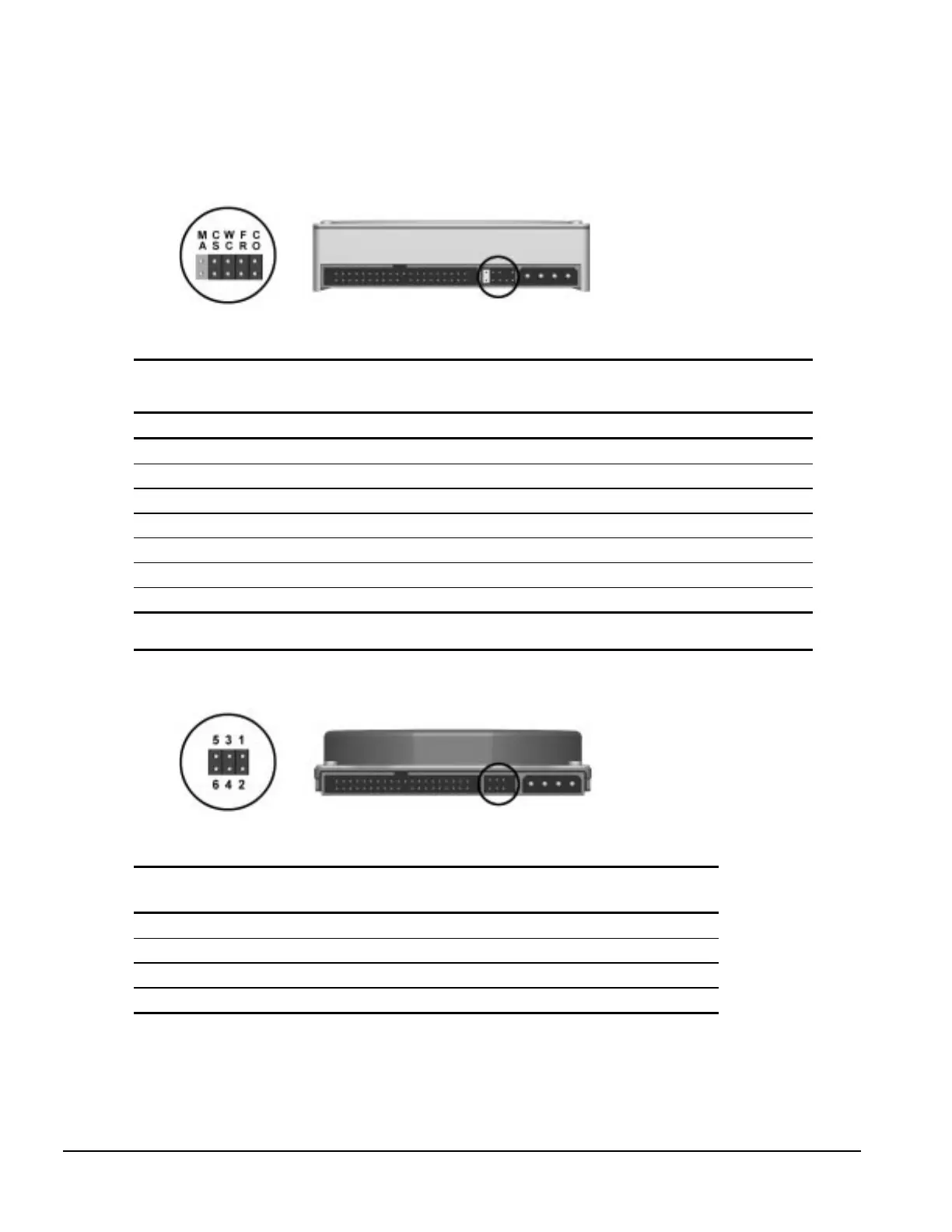

Figure 7-19.
2.1-GB Maxtor Ultra ATA Hard Drive Jumper Settings
Table 7-13
Jumper Settings
Description MA CS WC FR CO
Single J
Primary in dual system J
Secondary in dual system
O
Cable select J
Write cache enabled J
Reserved O
4032 cylinder option enabled J
J = Jumper . O = No jumper.
Figure 7-20
. 2.4-GB Ultra ATA Hard Drive Jumper Settings
Table 7-14
Jumper Settings
Definition Pins
Primary 1 to 2 and 3 to 5
Secondary
3 to 5
Cable Select 2 to 4 and 3 to 5
