Compaq Deskpro 2000 Series of Personal Computers 7-15

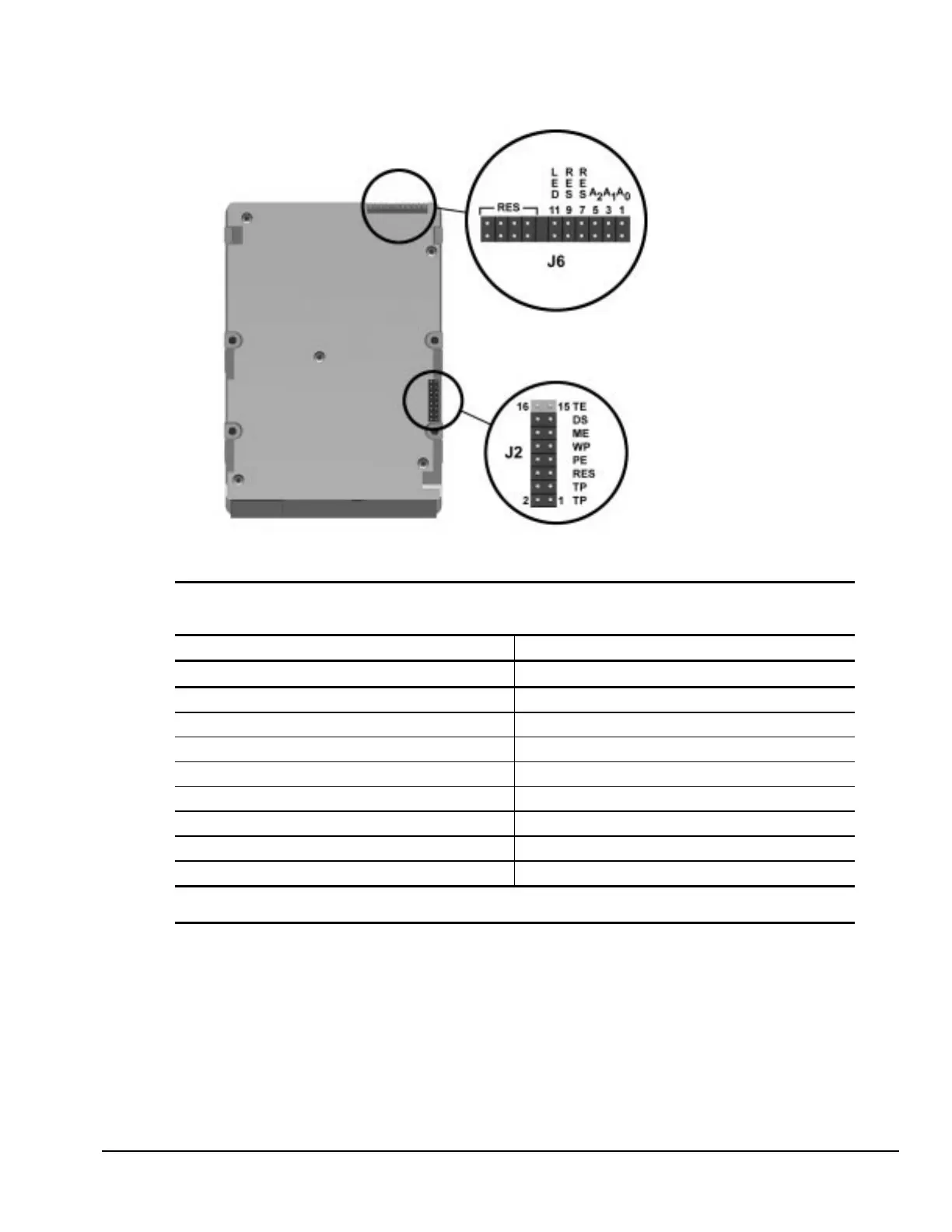

Figure 7-18.
4.3-GB Ultra SCSI Hard Drive Jumper Settings
Table 7-12
Jumper Settings
Jumper J2 Jumper J6
Definition Jumper Definition A0 A1 A2
Enable Terminators TE SCSI ID = 0 Off Off Off
Delay Motor Start DS SCSI ID = 1 On Off Off
Enable Motor Start ME SCSI ID = 2 Off On Off
Write Protect WP SCSI ID = 3 On On Off
Disable Parity PE SCSI ID = 4 Off Off On
Reserved RES SCSI ID = 5 On Off On
Termination Power from Drive TP SCSI ID = 6 Off On On
Termination Power from SCSI Bus TP SCSI ID = 7 On On On
All other pins of Jumper J6 reserved for other uses.
