Compaq Deskpro 2000 User Manual

6-6 Removal and Replacement Procedures - Minitower
6.6.2 Minitower J Hood
It is only necessary to remove the J hood if it has been damaged.
To remove the J hood, complete the following steps:
1. Remove the access panel (Section 6.6.1)
2. Remove the front bezel (Section 6.16.1).
3. Remove the four screws at the rear of the computer securing the J hood to the chassis.
4. Remove the single screw at the left front of the computer at the top.
5. Slide the J hood back about one-half inch (1.3 cm), and then lift it up from the chassis.

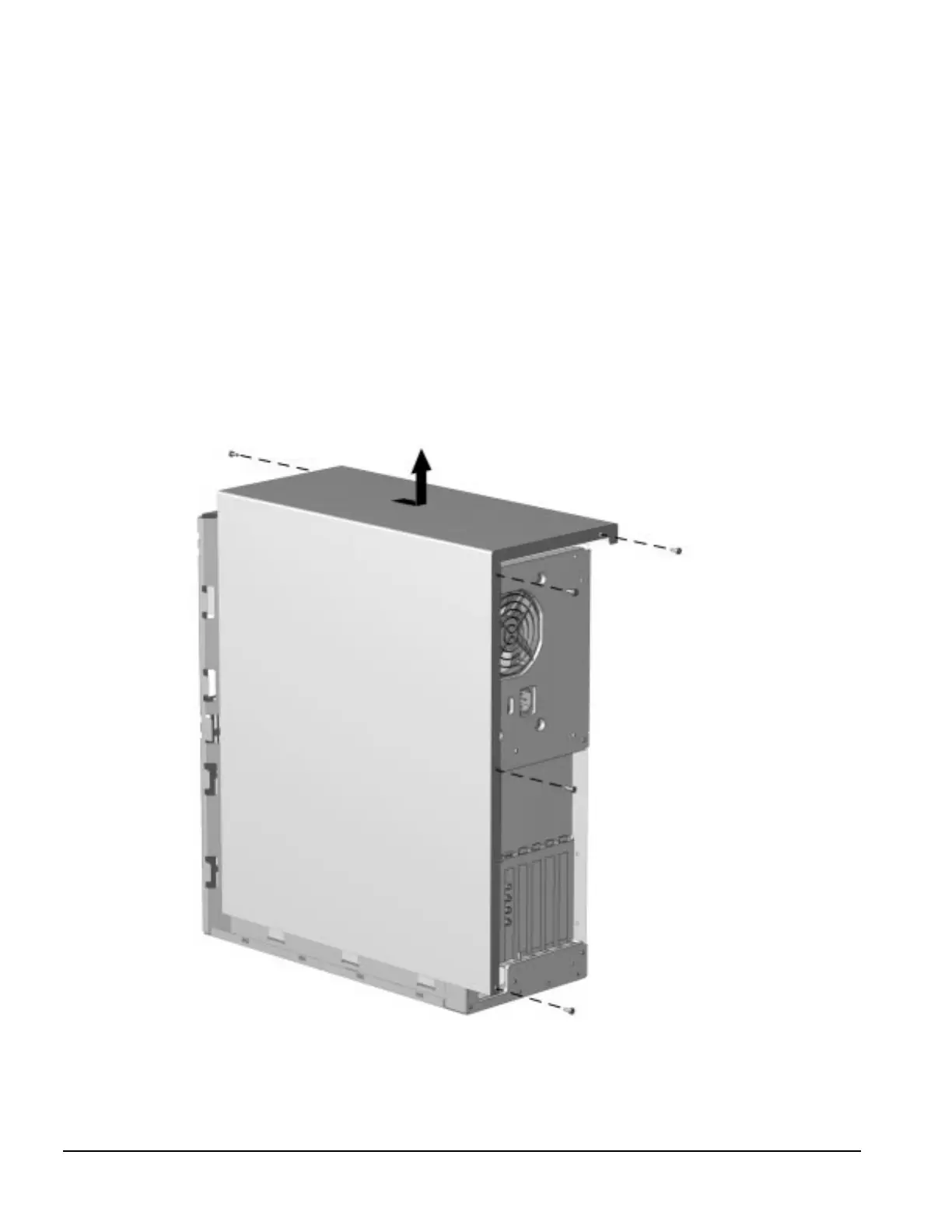

Figure 6-5.
Removing the J Hood
To replace the J hood, reverse the above procedure.
