1-18 Product Description

1.5.2 Drive Positions

The computer has space available up to five mass storage devices. The devices may be installed in

various configurations, including those shown in the table below.

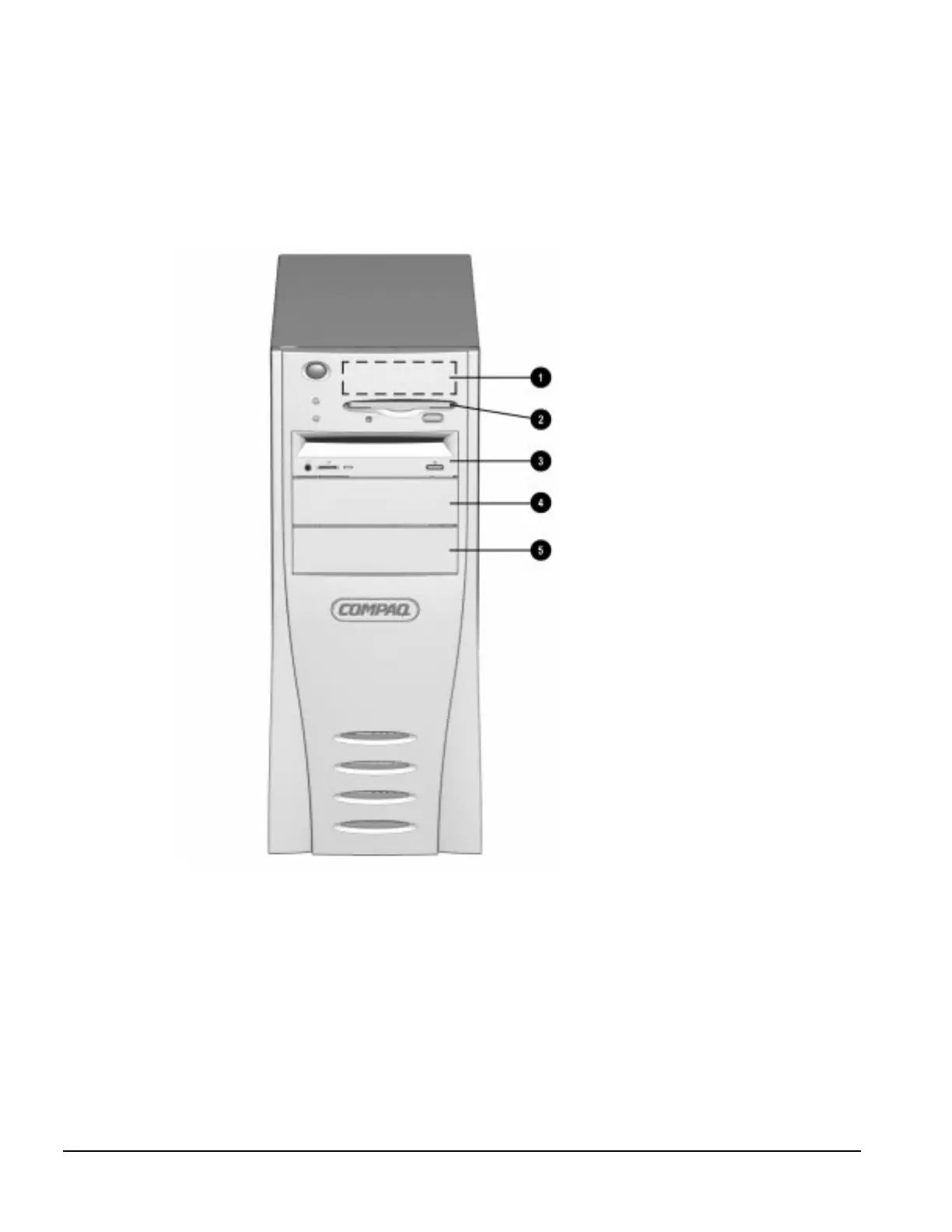

Figure 1-6.

Drive Positions on the Minitower Computer

Default Chapter5
