6-12 Removal and Replacement Procedures - Minitower
6.11 Speaker
To remove the speaker, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the riser brace (Section 6.7).
3. Disconnect the speaker cable from the audio board or the system board.
4. Remove the two speaker retaining screws.
5. Lift the speaker up out of the retaining tabs.

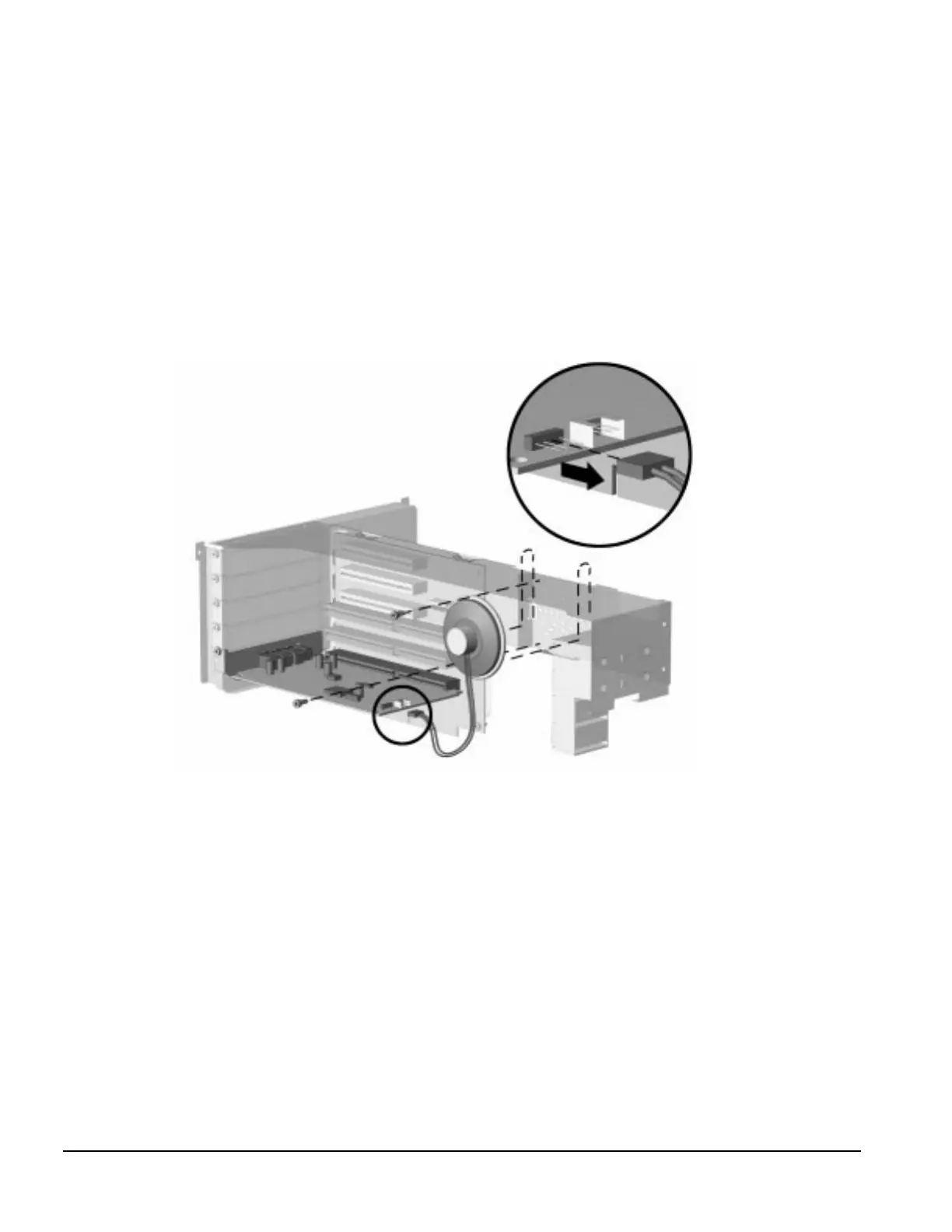

Figure 6-12.
Disconnecting the Speaker Cable from the Audio Board
To install the speaker, reverse the above procedure.
