Compaq Deskpro 2000 - Chapter 7 Jumper and Switch Information (cont.)

7-10 Jumper and Switch Information
7.3 Hard Drives
For more information about Compaq hard drives, refer to Appendix C in this guide. For more
information about using SCSI devices, refer to Appendix D.
7.3.1 2.1-GB EIDE Hard Drive Jumper Settings

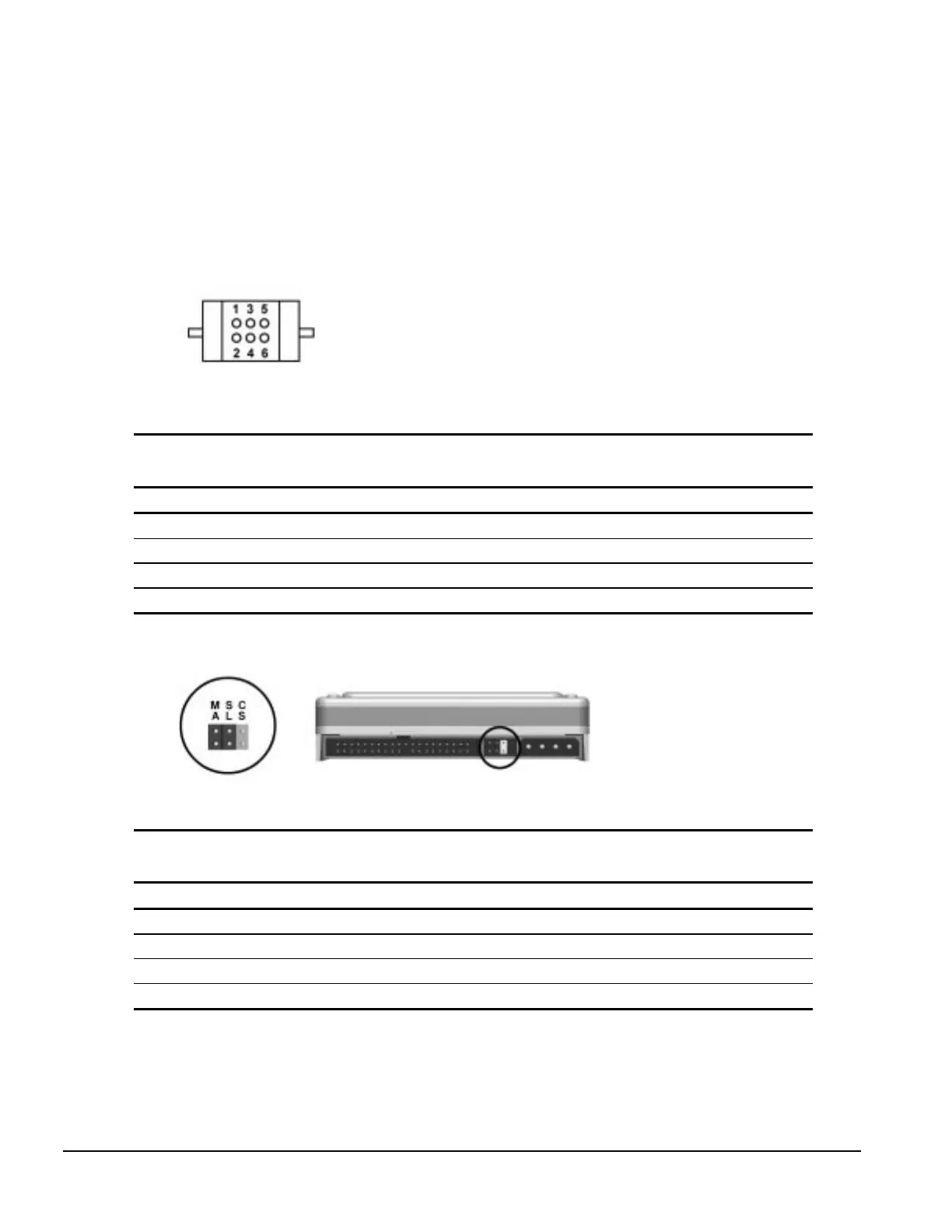

Figure 7-11.
2.1-GB Seagate EIDE Hard Drive Jumper Settings
Table 7-5
Jumper Settings
Definition Jumpers
Single 5 to 6
Primary 5 to 6 and 3 to 4
Secondary No connection
Cable select 3 to 4
Figure 7-12.
2.1-GB Western Digital EIDE hard drive Jumper settings
Table 7-6
Jumper Settings
Definition Jumpers
Single None
Primary MA
Secondary SL
Cable Select CS
