5-38 Removal and Replacement Procedures - Desktop
5.18 LED Cable
To remove the LED cable, complete the following steps::
1. Remove the system unit cover (Section 5.6).
2. Remove the front bezel (Section 5.14.1).
3. Remove the drive cage (Section 5.17).
4. Disconnect the LED cable from the system board 1.

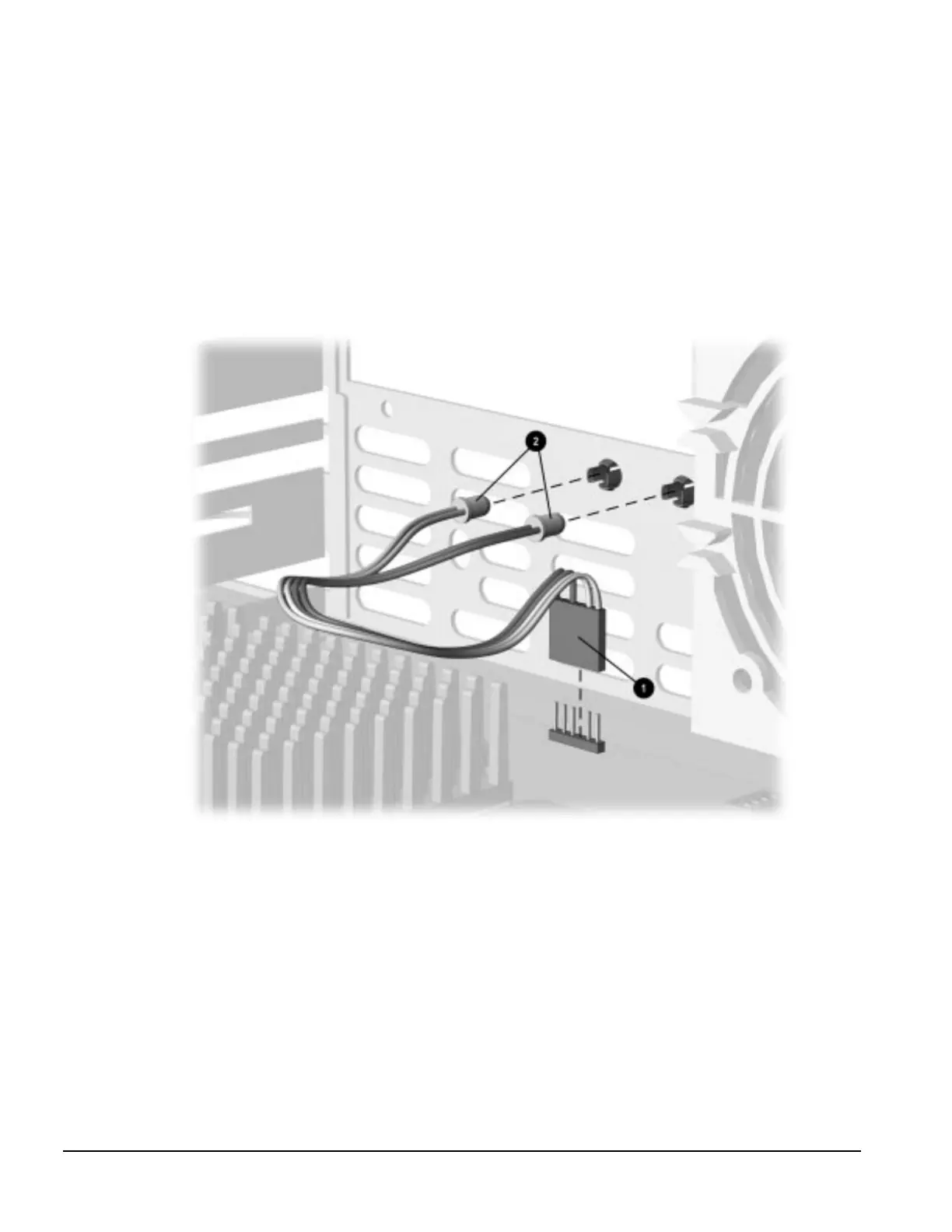

Figure 5-37.
Removing the LED Cable, Pentium System
