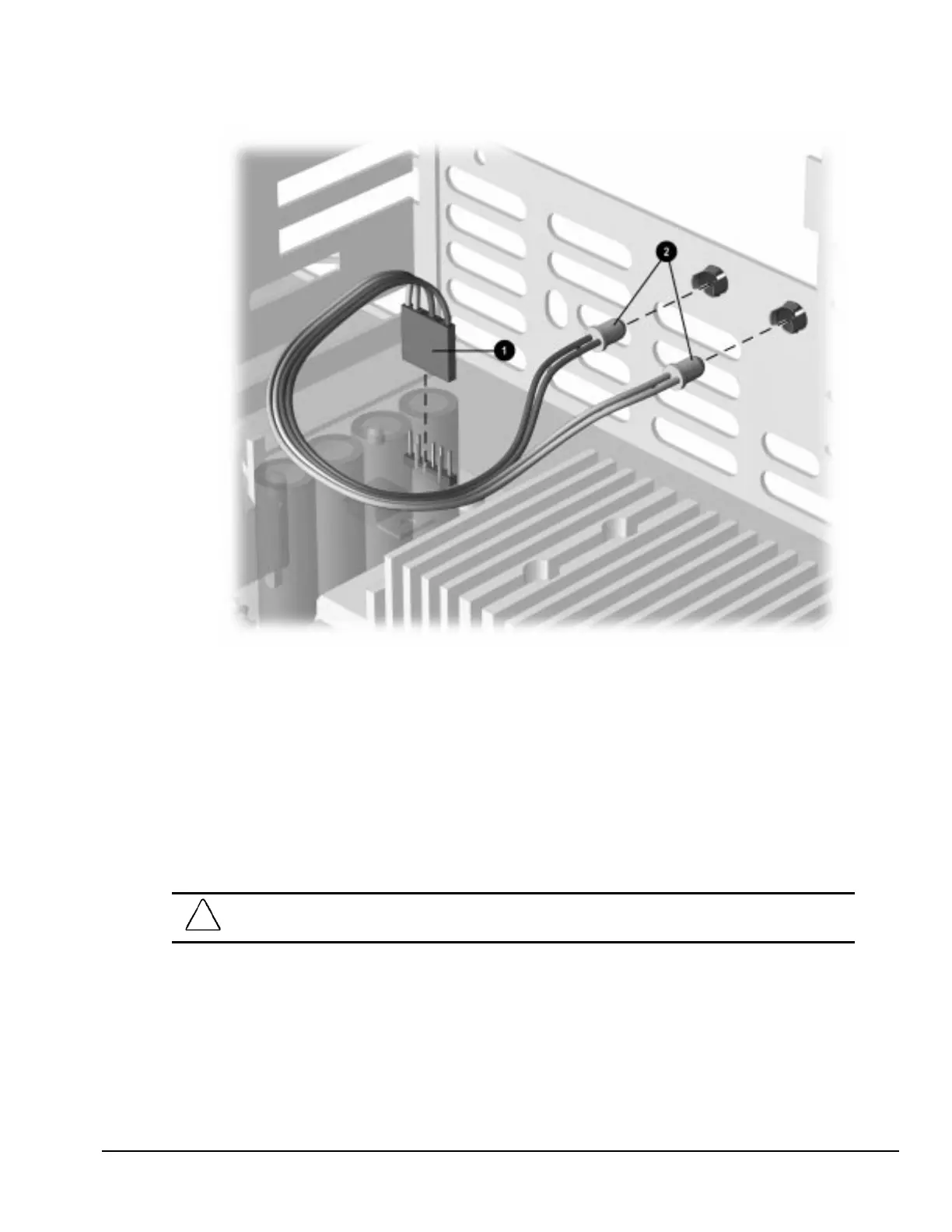

Figure 5-38.
Removing the LED Cable, Pentium II System
5. Remove the LED ends 2 of the cable from the front of the chassis by gently pulling on the cable
while at the same time pushing the ends of the LED from the front of the chassis.
To install the LED cable, reverse the above steps. The connector 1 is keyed to ensure proper
installation.
✎
When reinstalling the LED ends, note the markings on the front of the chassis for proper
LED placement. From the front of the chassis, the LED with the black wire goes on the
left, and the LED with the white wire on the right.
CAUTION: Ensure that the cable is pushed to the bottom of the chassis to avoid being damaged when
reinstalling the drive cage.
