Compaq Deskpro 2000 Series of Personal Computers 5-19
5.11 Riser Brace
The riser brace should only be removed from the computer if it has been damaged.
1. Remove the system unit cover (Section 5.6).
2. Remove the expansion boards (Section 5.8).
3. Remove the riser board (Section 5.10).
4. Remove the two screws that secure the riser brace to the chassis; then, lift the brace straight up.

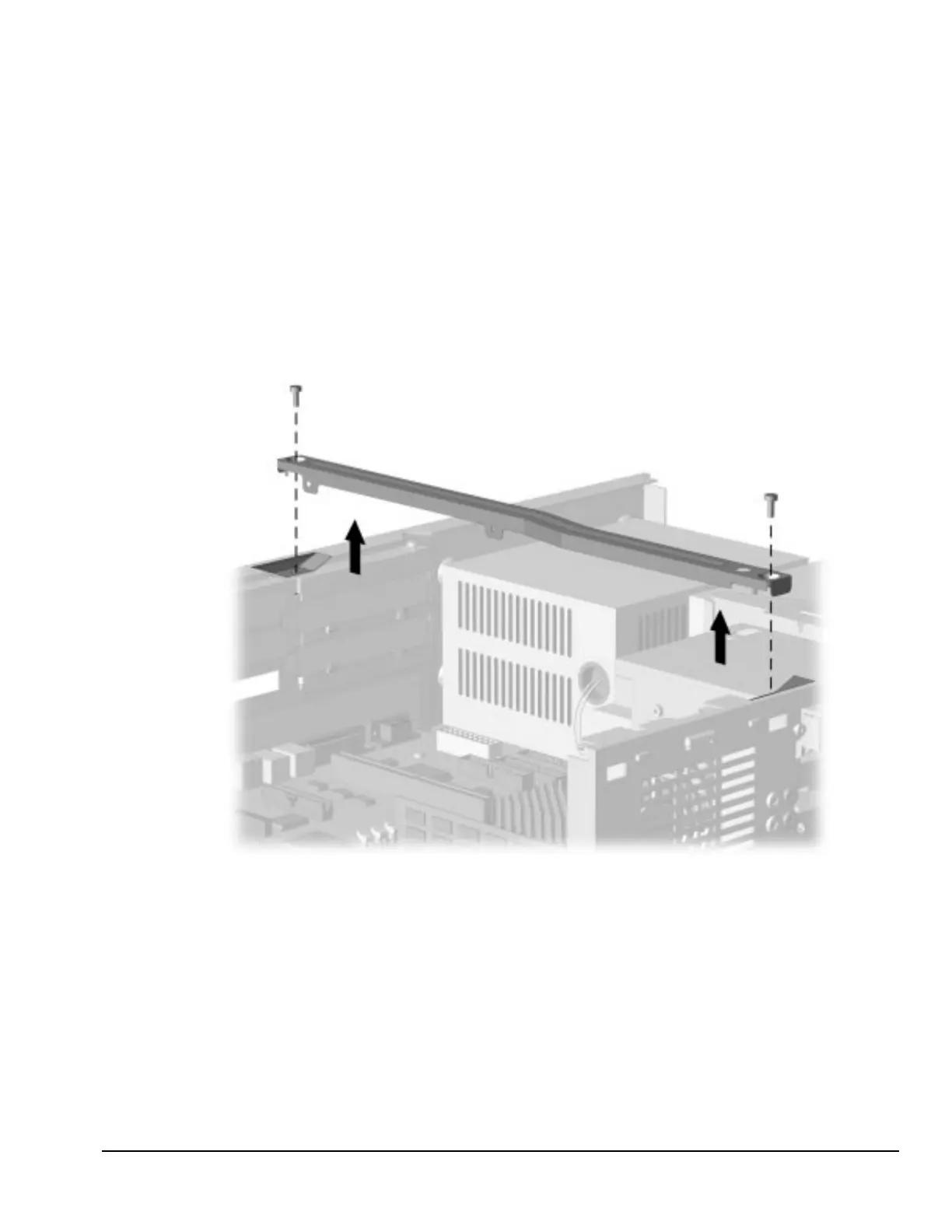

Figure 5-17.
Removing the Riser Brace
To reinstall the riser brace, reverse the above procedure.
