Compaq Deskpro 2000 Series of Personal Computers 5-13
5.9.2 System Board Graphics Memory
Module Upgrade
To install a graphics memory module upgrade for the graphics controller that is preinstalled in the
system board, complete the following steps:
1. Remove the system unit cover (Section 5.6).
2. Remove any outboard expansion boards that might block access to the memory connectors
(Section 5.8.2).
3. Install the graphics memory upgrade module onto the system board.

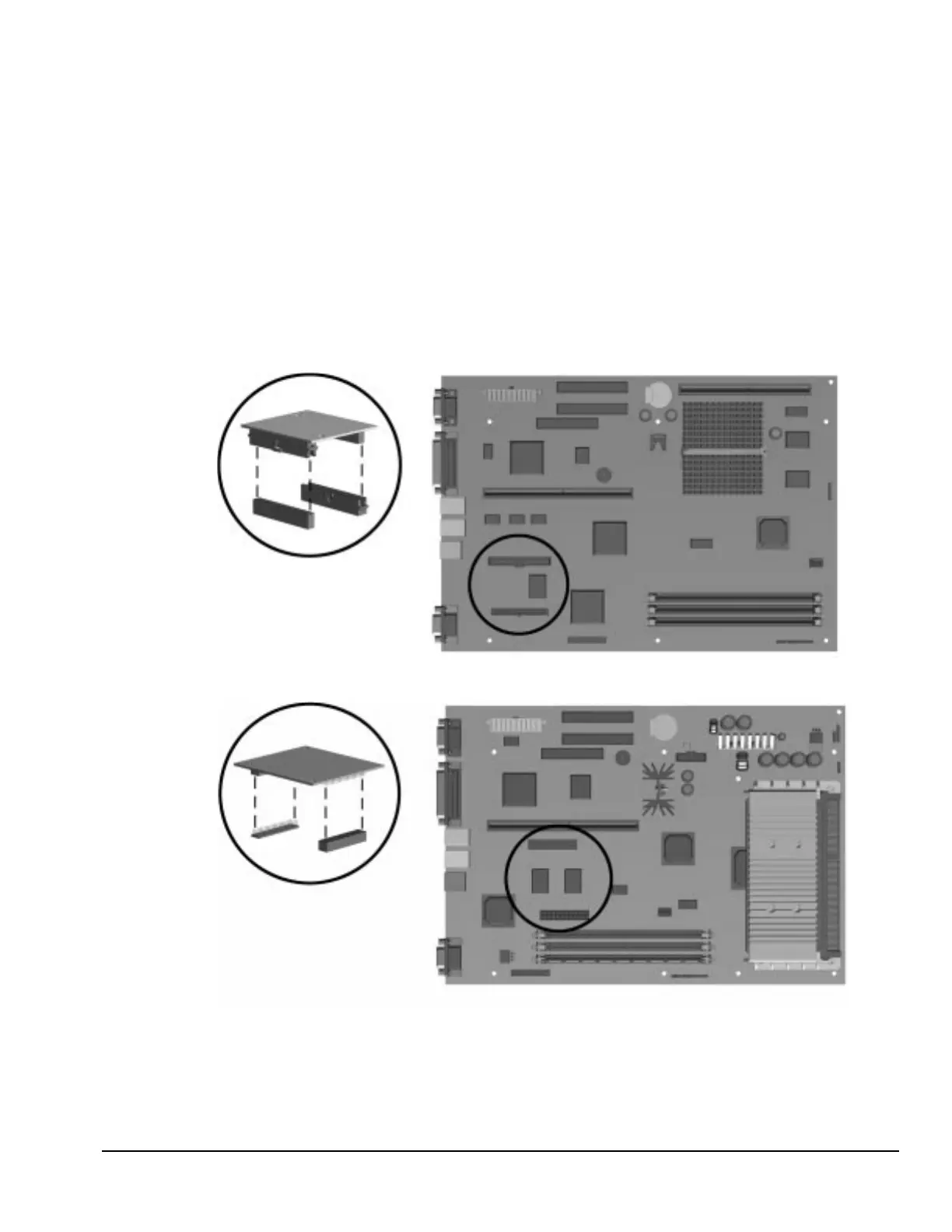

Figure 5-11.
Installing the Graphics Memory Upgrade Module on the Pentium System Board
Figure 5-12.
Installing the Graphics Memory Upgrade Module on the Pentium II System Board
4. Replace any outboard expansion boards that were removed.
5. Replace the system unit cover.
