6-18 Removal and Replacement Procedures - Minitower
6.12.4 System Board Graphics Memory
Module Upgrade
To install a graphics memory module upgrade for the graphics controller that is preinstalled in the
system board, complete the following steps:
1. Remove the access panel (Section 6.6.1).
2. Remove the riser brace (Section 6.7).
3. Install the graphics memory upgrade module onto the system board.

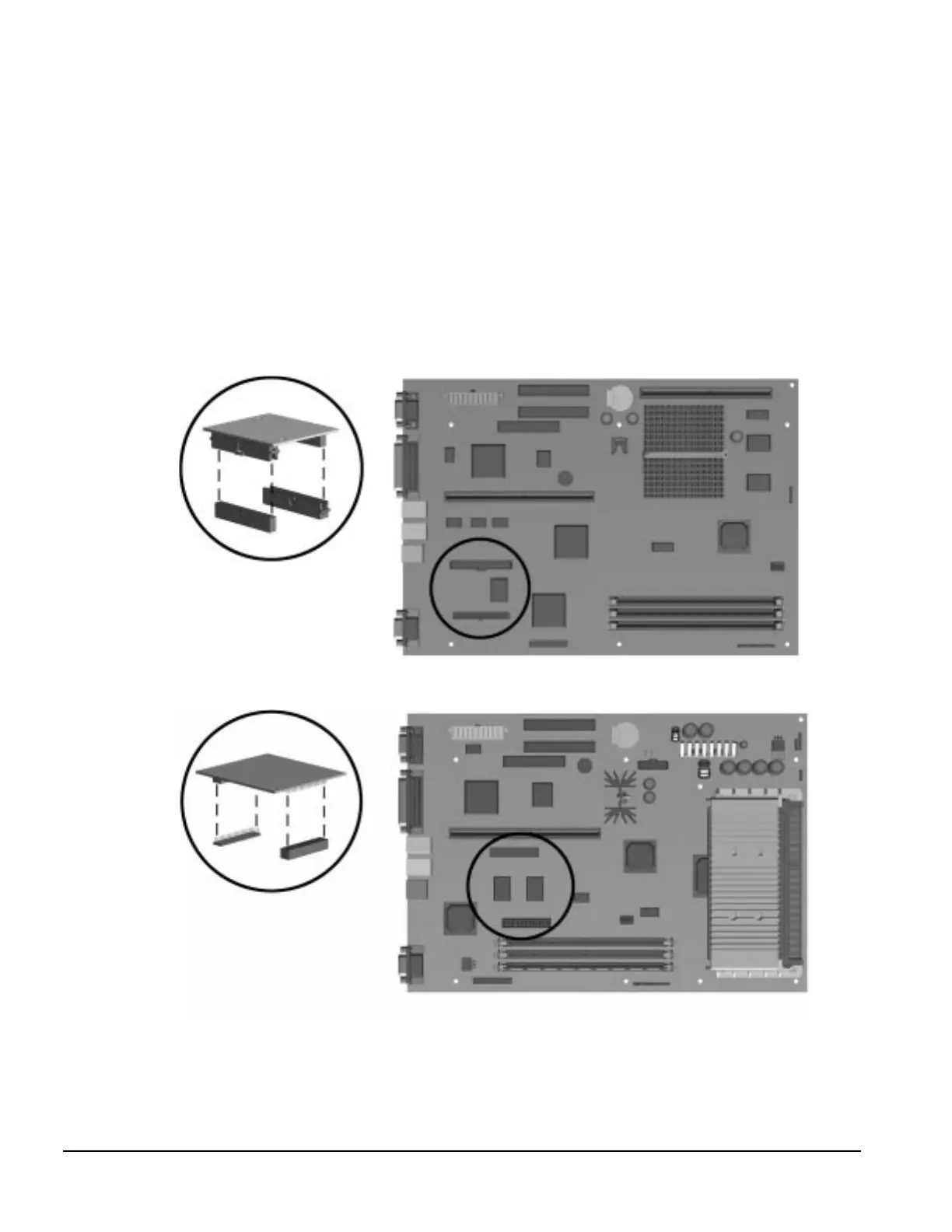

Figure 6-17.
Installing the Graphics Memory Upgrade Module on the Pentium System Board
Figure 6-18.
Installing the Graphics Memory Upgrade Module on the Pentium II System Board
4. Replace the riser brace and access panel.
5. Turn the computer on and start Windows 95.
