6-4 Removal and Replacement Procedures - Minitower
6.5 Cable Lock
To install the cable lock provision, complete the following steps:
1. Remove one thumbscrew from the rear of the computer. Use a flat-bladed screwdriver if needed.
2. Separate the pieces of the security bracket by bending the metal where the three pieces join.
3. Insert the tang of the narrow bracket into the slot and slide the u-shaped bracket between narrow
bracket and the system unit cover; then, install the self-tapping screw included in the cable lock
kit.
4. Cover the screw with the flat portion of the bracket.
5. Install a lock (not provided) to secure the top part of the security bracket to control access to the
inside of the computer. Install a cable lock (not provided) to secure the computer to an immovable
location.

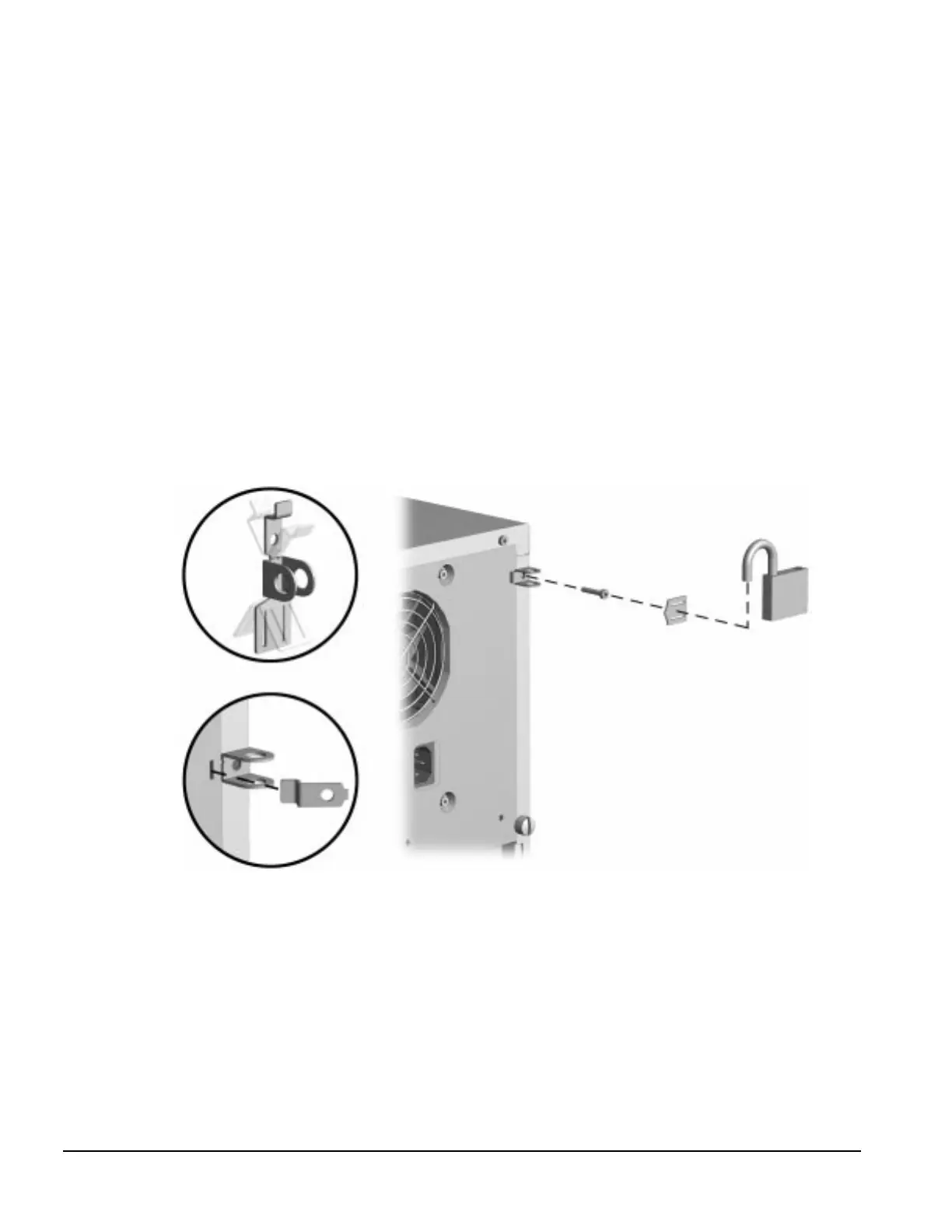

Figure 6-3.
Installing the Cable Lock
To remove the cable lock provision, reverse the above procedure.
