5-8 Removal and Replacement Procedures - Desktop
3. Unsnap the speaker-retaining clip 1 on the right side (from the front of the chassis) of the drive
bay and remove the speaker 3.

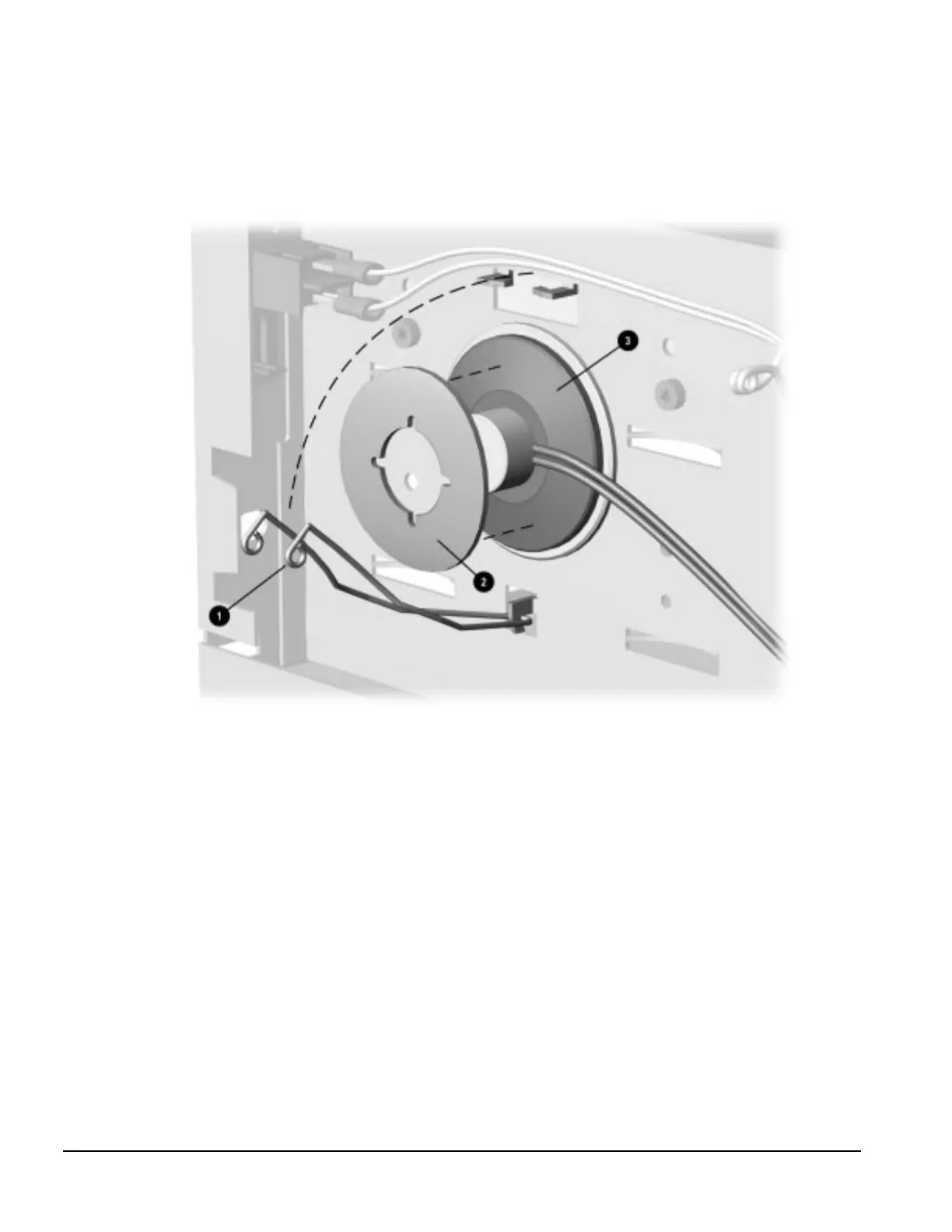

Figure 5-6.
Removing the Speaker
To replace the speaker, ensure that the cardboard insulator 2 is on the speaker; then, reverse the
above procedure. The cable connector is keyed for proper installation.
