Compaq Deskpro 2000 Series of Personal Computers 6-9
4. Remove the expansion board screw, then slide the expansion board out of the expansion slot.

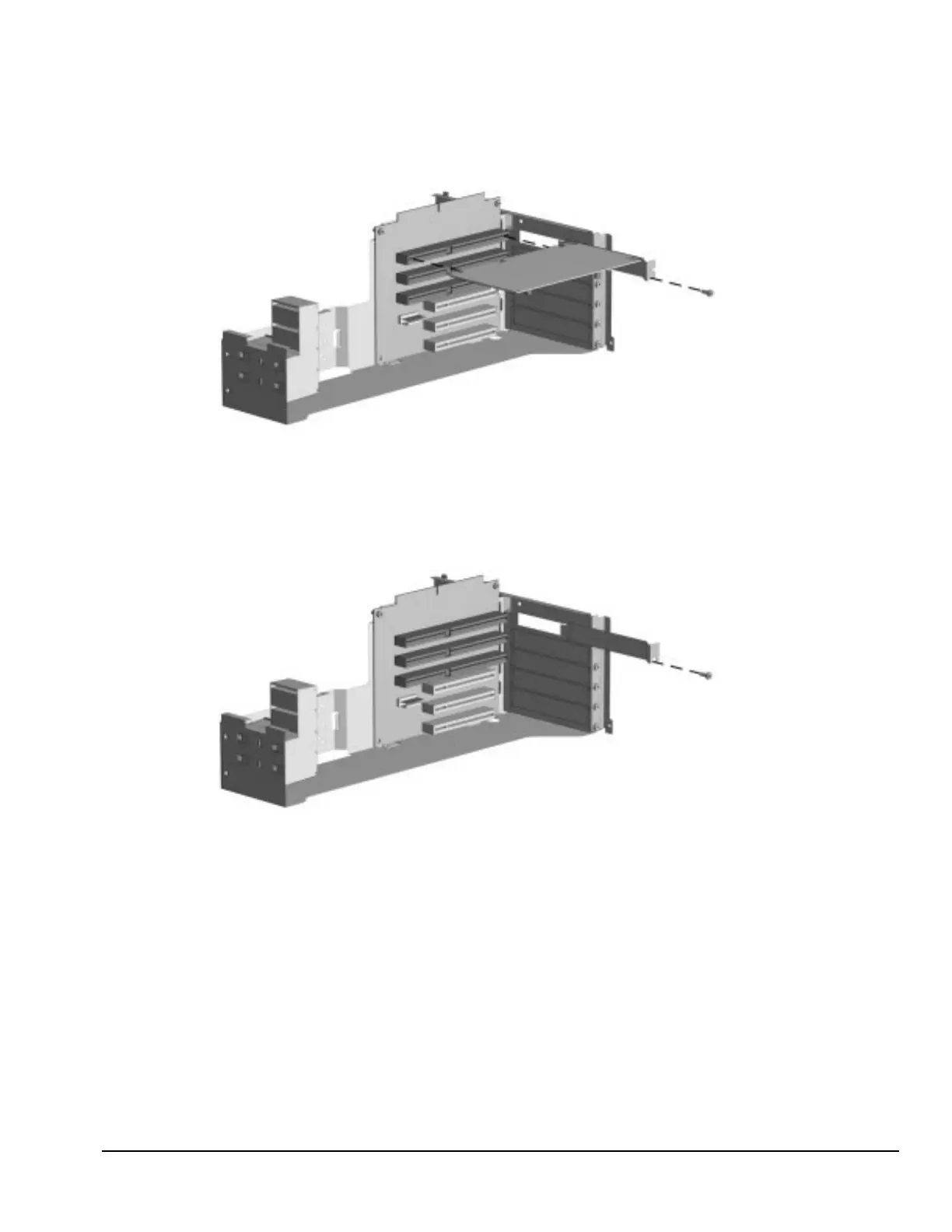

Figure 6-8.
Removing an Expansion Board
To install an expansion board, reverse the above procedure.
✎
If you are installing an expansion board for the first time in a slot, remove the retaining
screw and the expansion board slot cover before installing the board.
Figure 6-9.
Removing the Expansion Slot Cover
