Compaq Deskpro 2000 Series of Personal Computers 6-21
✎
When installing the Pentium II system board, ensure that the air duct is mounted in the front
of the chassis with the alignment flaps 3 against the sides. The processor slides under the
top flap of the air duct.
CAUTION: Do not remove the air duct from the front of the unit. If the air duct is not installed or if the
processor is not under the flap of the air duct, the processor will run hot, which can cause damage to the
processor.

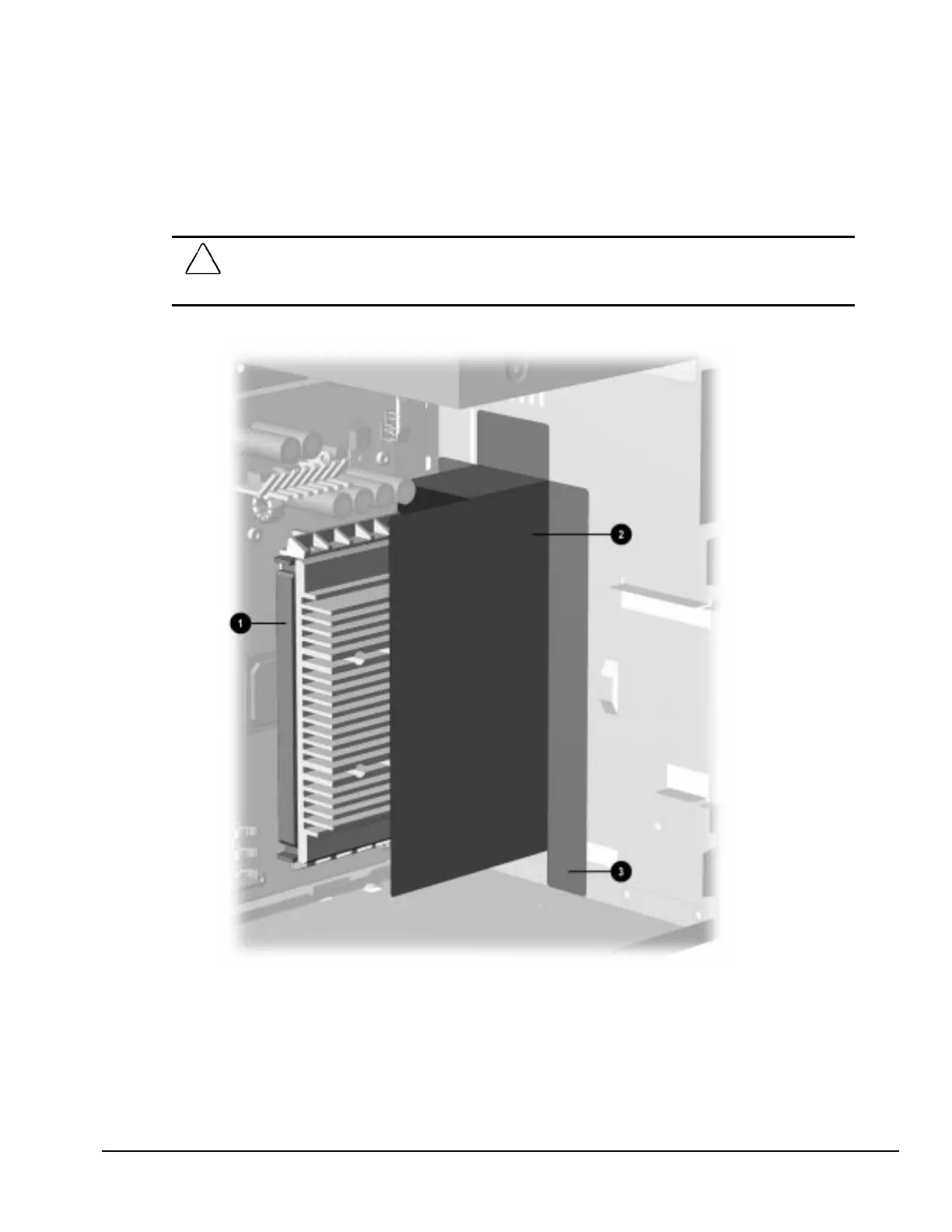

Figure 6-21.
Pentium II System Board with Processor
1
and Air Duct
2
Installed
