Compaq Deskpro 2000

6-40 Removal and Replacement Procedures - Minitower
4. Install the drive or bracket assembly into the drive bay. Ensure that the guide screw fits into the
tab on the side of the bay.
5. Secure the drive or bracket assembly with two wafer screws.

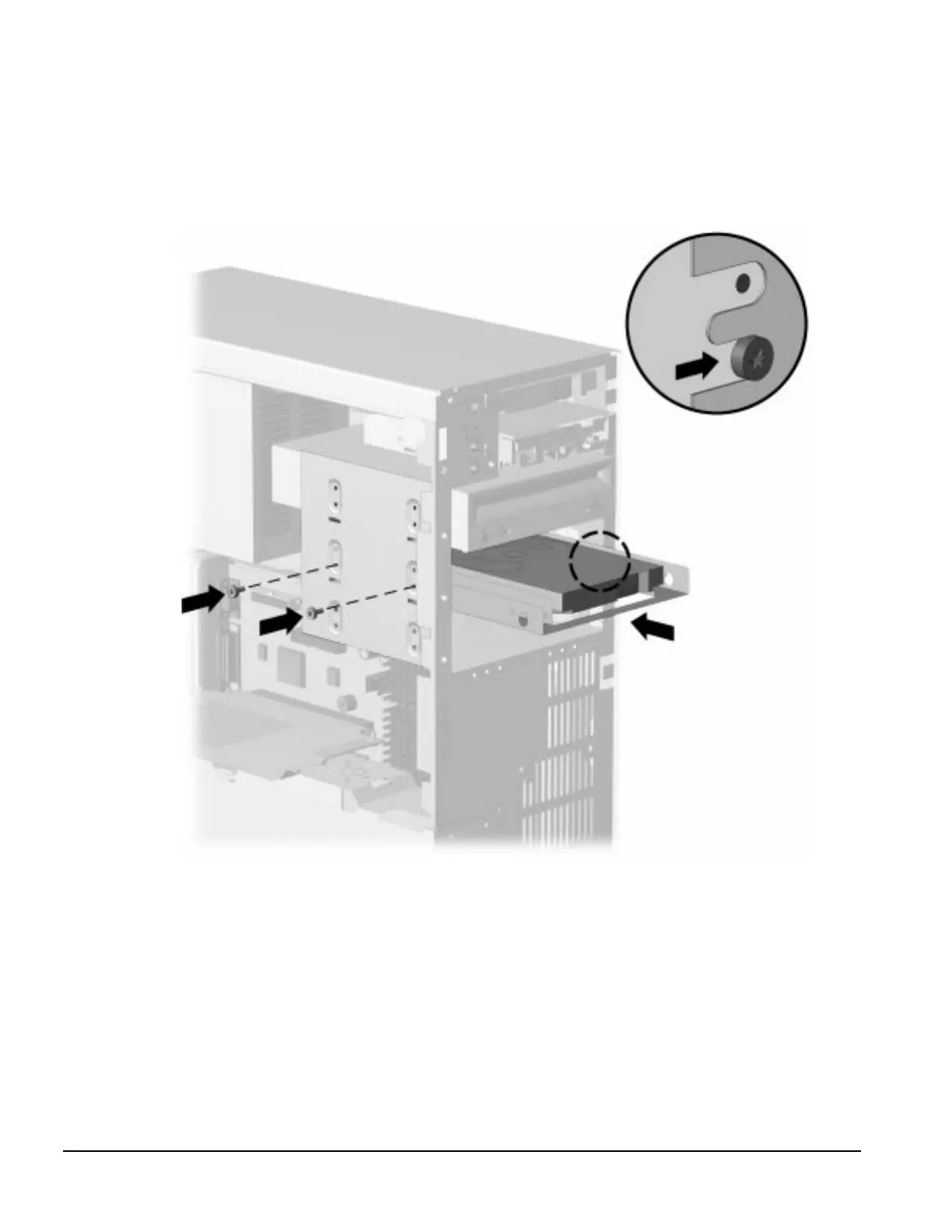

Figure 6-41.
Installing the Bracket Assembly and Securing It with the Wafer Screws
