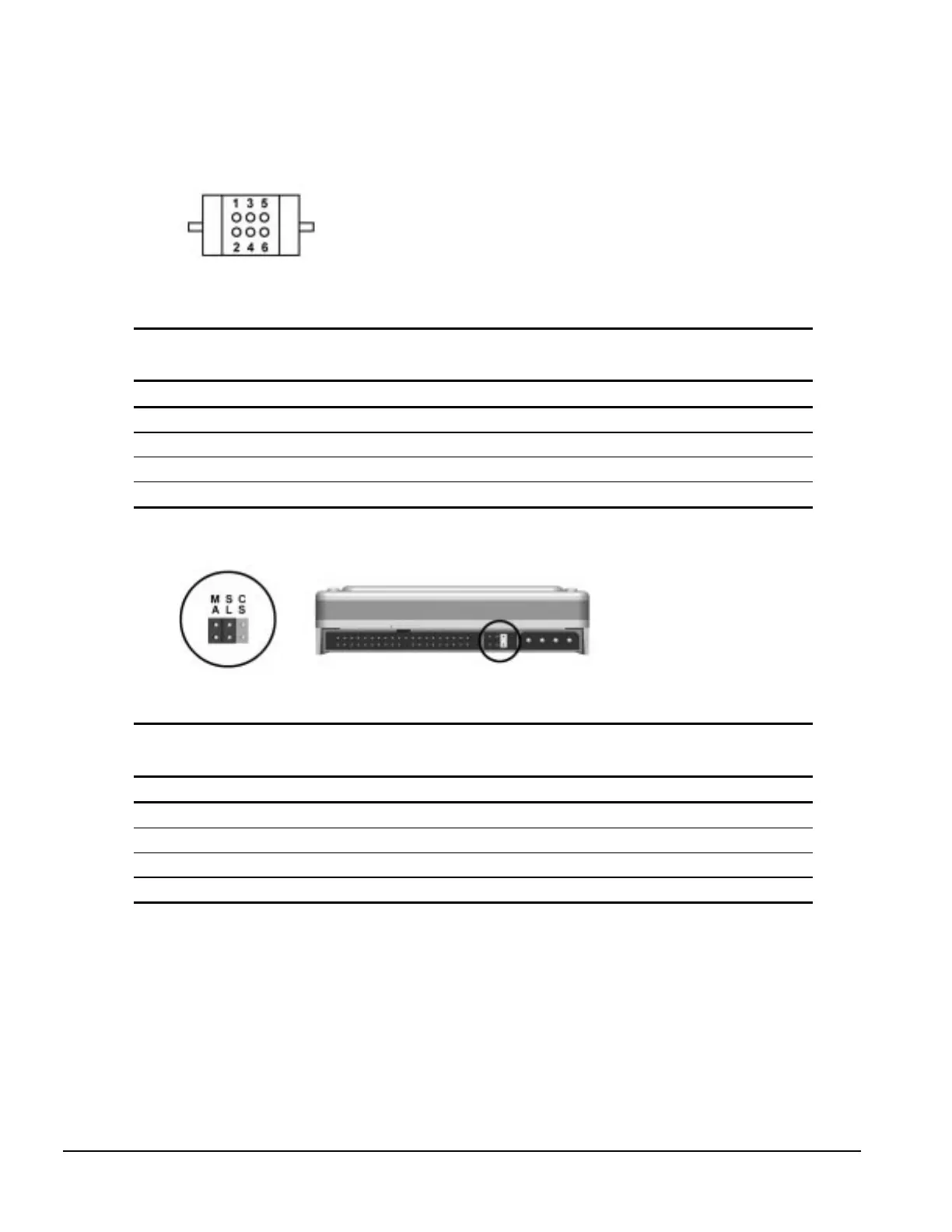

7-12 Jumper and Switch Information
7.3.2 3.2-GB EIDE Hard Drive Jumper Settings
Figure 7-14.
3.2-GB Seagate EIDE Hard Drive Jumper Settings
Table 7-8
Jumper Settings
Definition Jumpers
Single 5 to 6
Primary 5 to 6 and 3 to 4
Secondary No connection
Cable select 3 to 4
Figure 7-15.
3.2-GB Western Digital EIDE Hard Drive Jumper settings
Table 7-9
Jumper Settings
Definition Jumpers
Single None
Primary MA
Secondary SL
Cable Select CS
