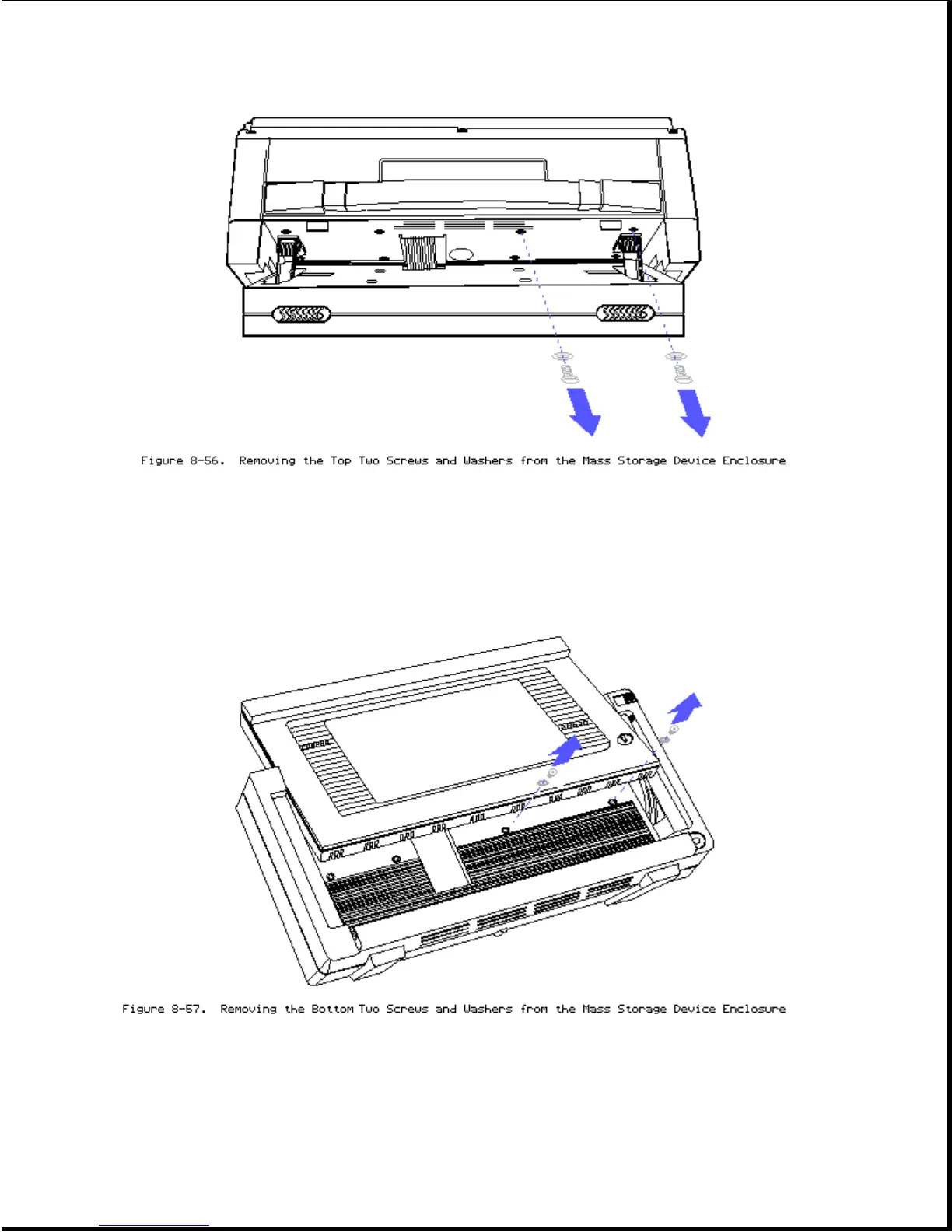

9. Lift the plasma display into an upright position and remove the bottom
two screws and washers from the mass storage device enclosure with a
Torx screwdriver (Figure 8-57).
10. Carefully slide the mass storage device enclosure out of the computer
chassis (Figure 8-58).
