Configuration Switch Bank SW1
How the COMPAQ Enhanced Color Graphics Board is to be used determines the
setting for configuration switch bank SW1. The board can be used as either
the only or primary display controller board (the one active at power on or
reboot) or secondary display controller board.

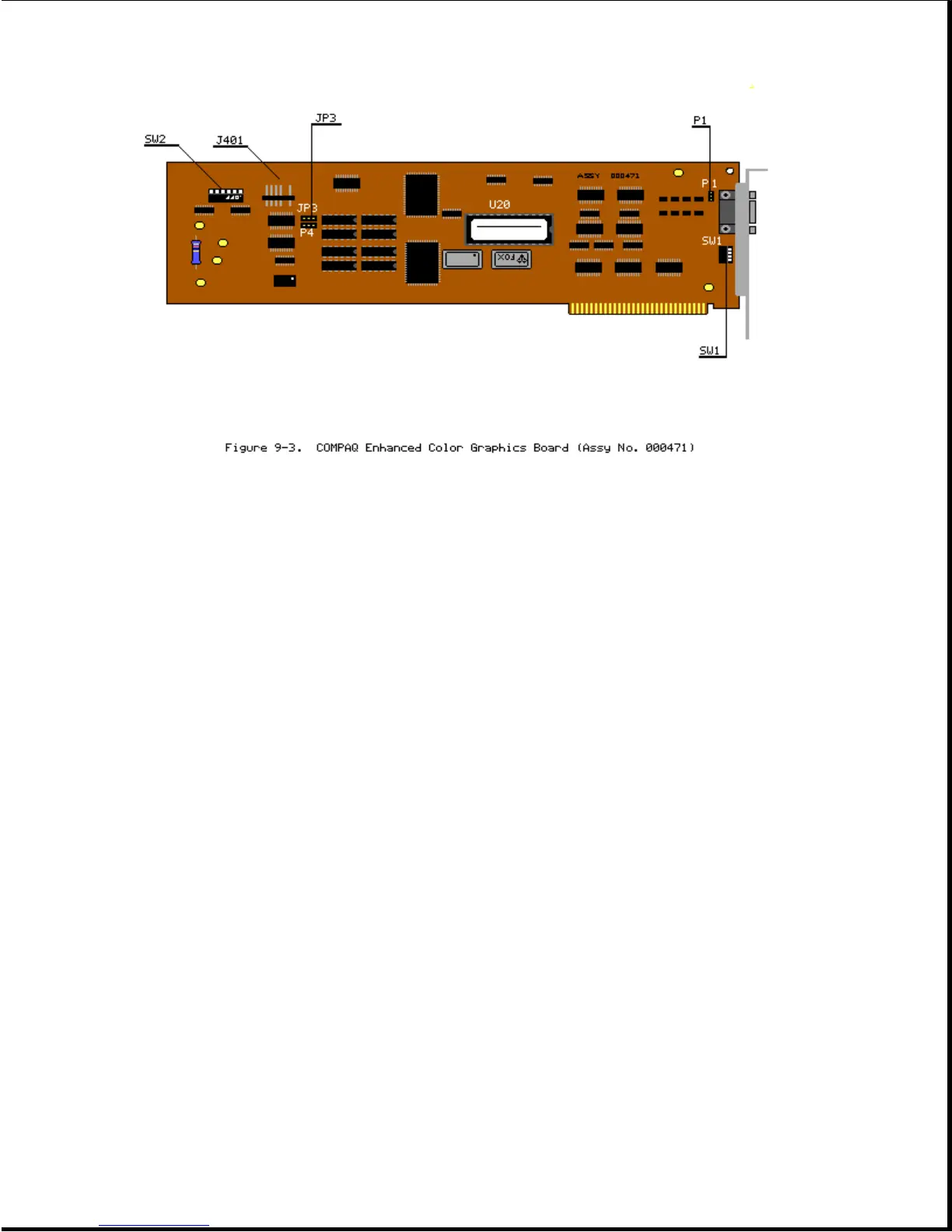

Refer to Figure 9-2 or 9-3 for the location of configuration switch bank SW1.
Table 9-10 shows the correct settings for configuration switch bank SW1 if the
COMPAQ Enhanced Color Graphics Board is the only or primary display controller
board in the system.
Table 9-11 shows the correct settings for configuration switch bank SW1 if
the COMPAQ Enhanced Color Graphics Board is the secondary display controller
board in the system.
To change settings, use the end of a ball point pen to toggle the switch to
the correct position.
Table 9-10. COMPAQ Enhanced Color Graphics Board as the Primary/Only Display
Controller Board Switch Settings
==============================================================================
SW1
Power On Mode Allowable Switches Secondary
Monitor Type (Character Format) 1234Board Type
------------------------------------------------------------------------------
COMPAQ Color Monitor 80 x 25 OFF ON ON OFF Monochrome
or Compatible Enhanced (640 x 350 Display
Color Monitor or COMPAQ resolution) Adapter
Dual Mode Monitor 80 x 25
------------------------------------------------------------------------------
COMPAQ Color Monitor 80 x 25 ON ON ON OFF Monochrome
or Compatible Enhanced (640 x 200 Display
Color Monitor or COMPAQ resolution) Adapter
Dual Mode Monitor 80 x 25
