Chapter 8.23 Plasma Display Filter
To remove the plasma display filter:
1. Complete the preparation procedure (see Section 8.2).
2. Complete steps 2 through 4 of Section 8.22.

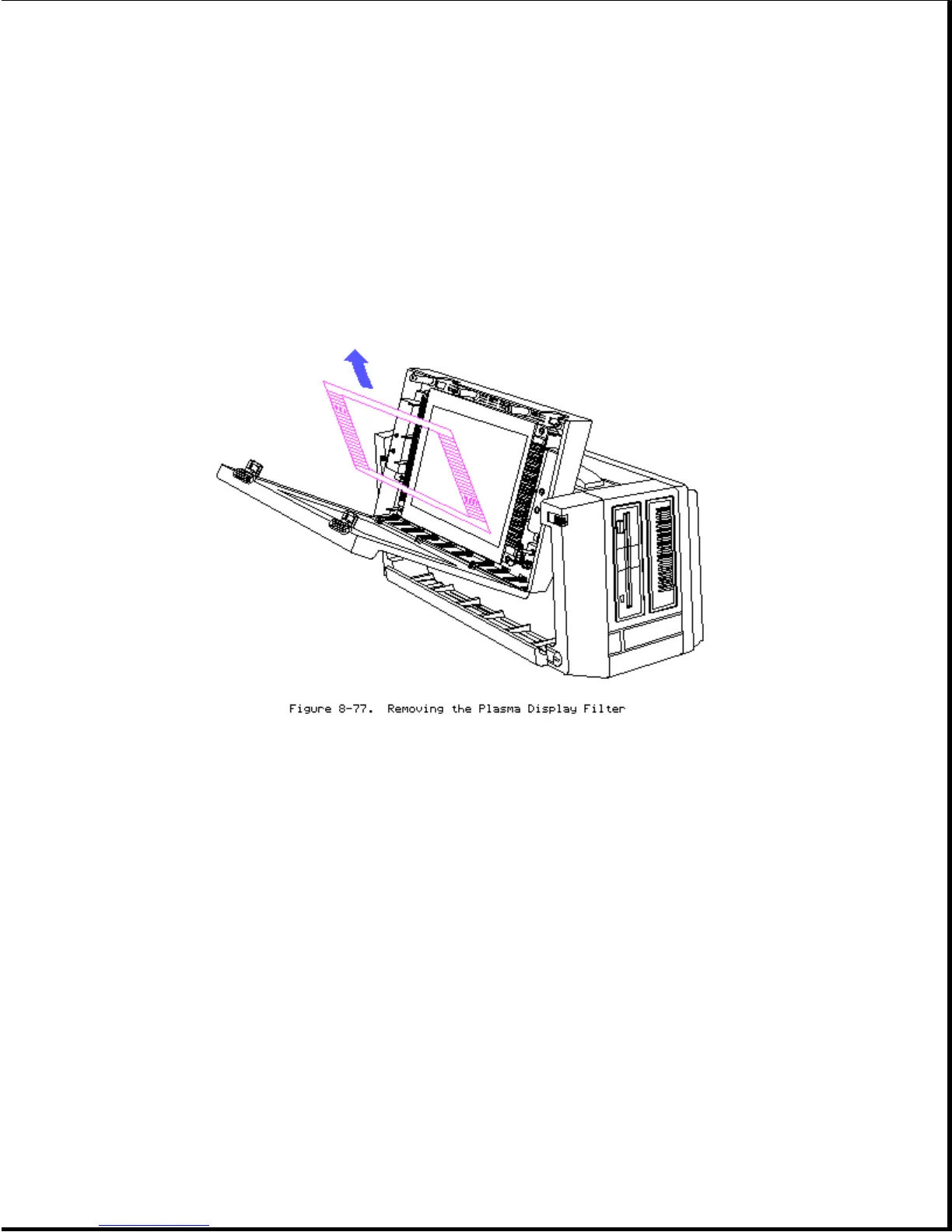

3. Remove the filter by lifting it up and out of the plasma display
enclosure as shown in Figure 8-77.
To replace the plasma display filter, reverse steps 1 through 3.
Chapter 8.24 Brightness Control Assembly
To remove the brightness control assembly:
1. Complete the preparation procedure (see Section 8.2).
2. Remove the plasma display (see Section 8.22).
3. Locate the brightness control assembly shown in Figure 8-78.
