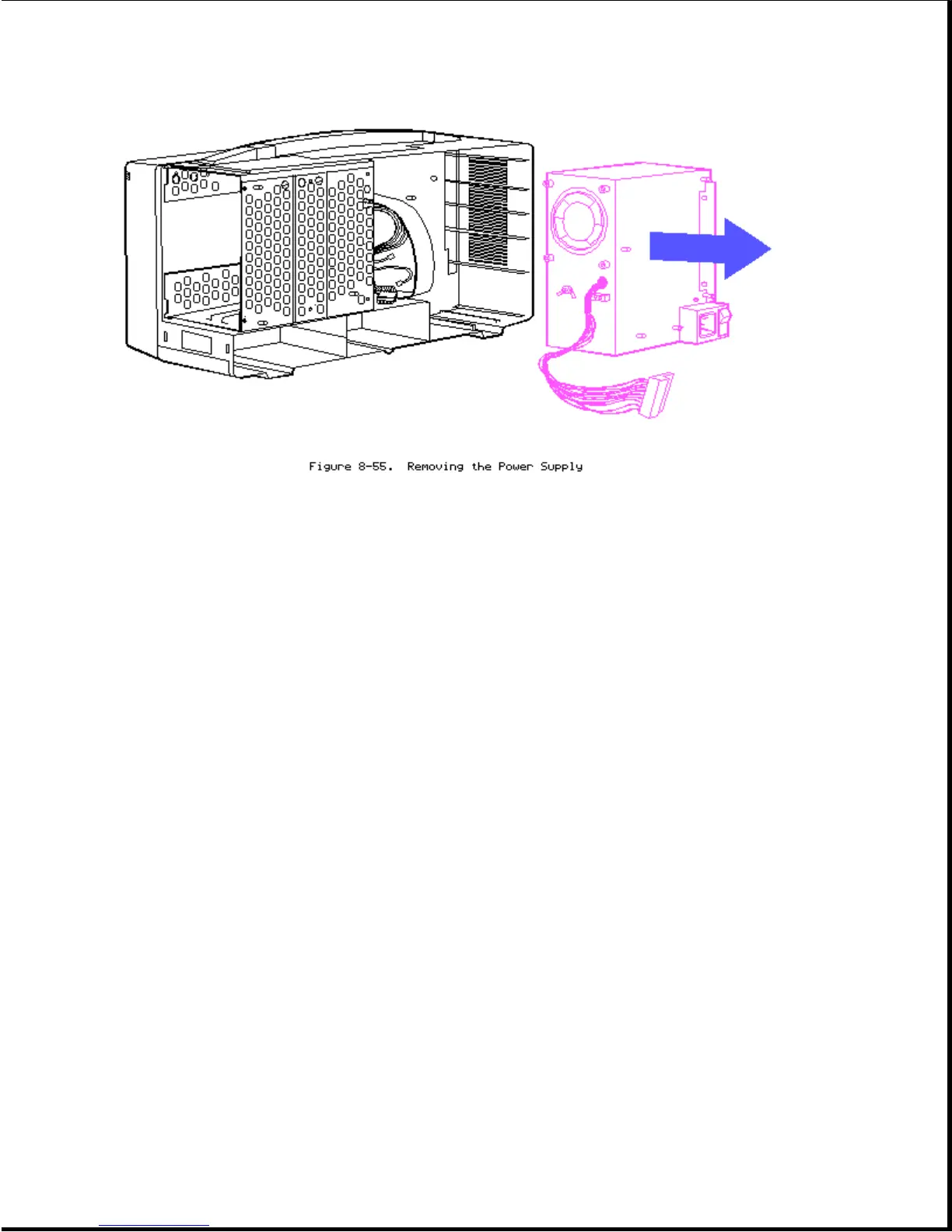

To replace the power supply, reverse steps 1 through 14.
Chapter 8.20 Mass Storage Device Enclosure
To remove the mass storage device enclosure:
1. Complete the preparation procedure (see Section 8.2).
2. Remove the rear panel (see Section 8.4).
3. Remove the interface connector cover, if installed (see Section 8.5).
4. Remove the 32 bit memory/modem interface board, if installed (see
Section 8.8).
5. Remove the system board (see Section 8.14).
6. Remove the mass storage device subassembly (see Section 8.16).
7. Place the computer in an upright position.
8. Place the plasma display at an outward angle, and remove the top two
screws and washers from the mass storage device enclosure with an angle
Torx screwdriver (Figure 8-56).
