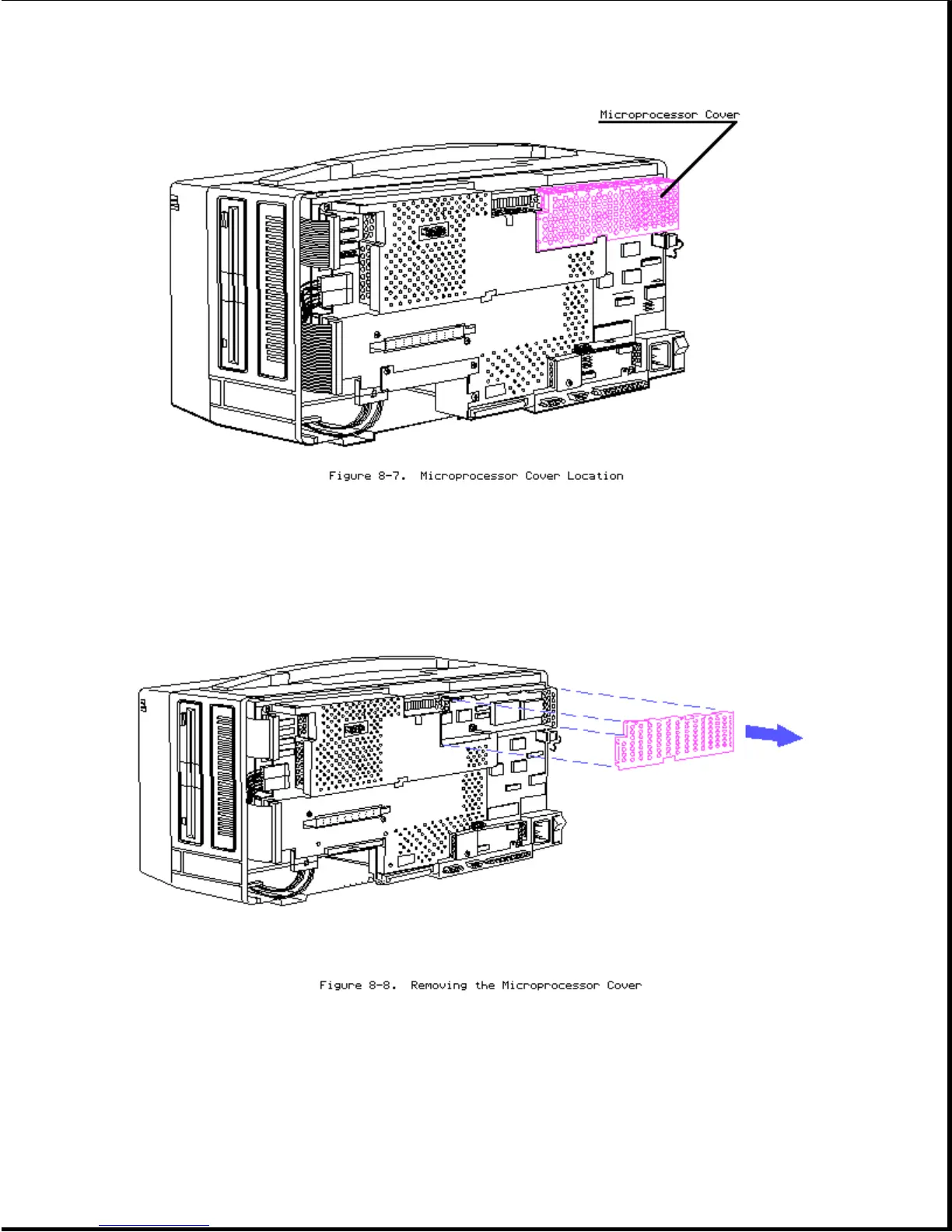

4. Grasp the microprocessor cover at its edges; gently lift it up and away
from the system board and set it aside (Figure 8-8).
To replace the microprocessor cover, reverse steps 1 through 4.
NOTE: Position the cover so that the edges slanted in go inside the fence and
those slanted out go outside the fence. Press the cover securely into place
by working from one end to the other.
