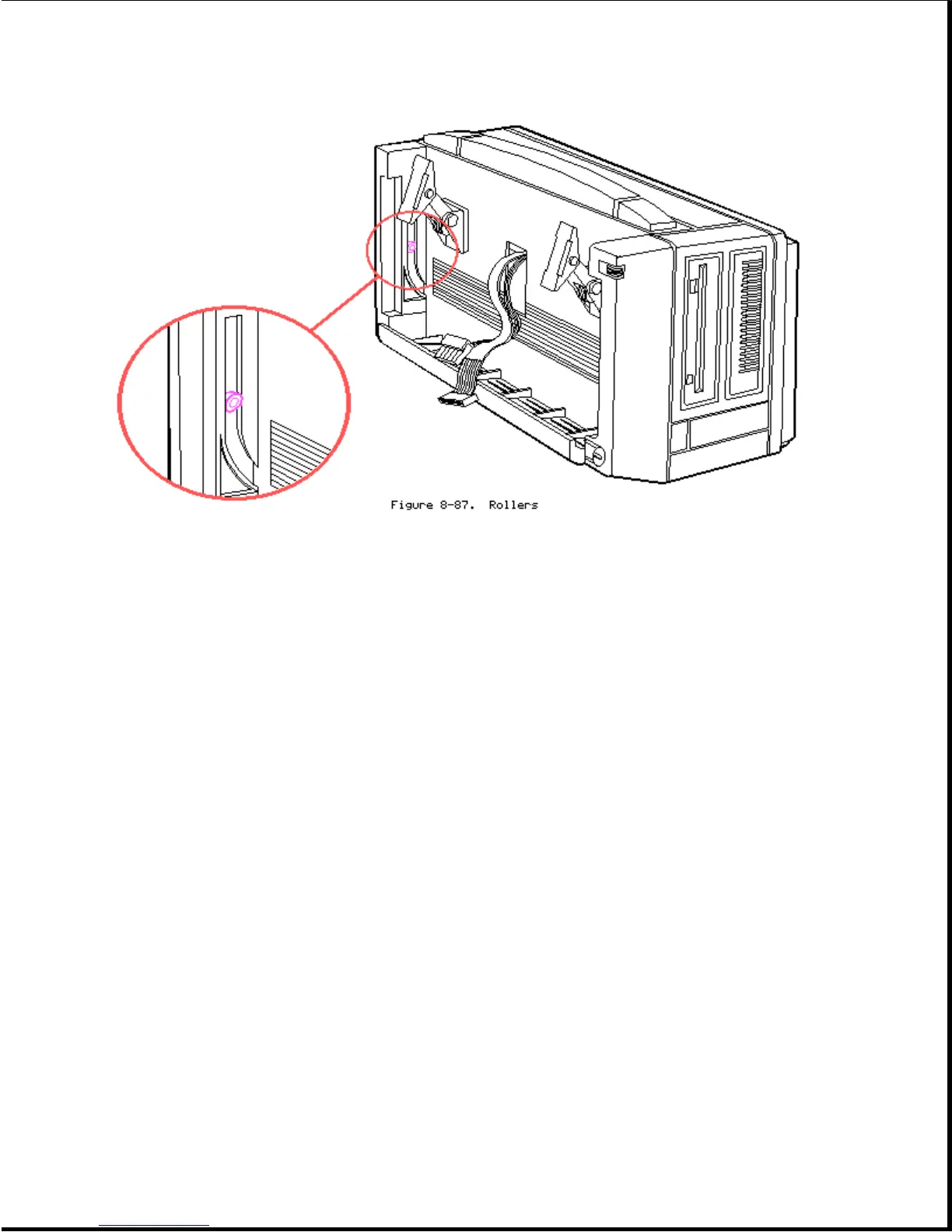

11. Remove the rollers from the grooves, place them on the mandrels, and
set them aside.
To replace the display enclosure:
1. Guide the display cable assembly back through the slot in the main
enclosure.
2. With the display enclosure in the down position, guide each roller and
mandrel back into position and replace the screw.
3. While aligning the display enclosure with the plasma display hinges with
one hand, replace the four screws that secure the display enclosure to
the plasma display hinges.
NOTE: Slight movement of the display enclosure may be required to align the
roller with the groove.
4. Reverse steps 2 through 4 in the removal part of this procedure.
5. Replace the brightness control knob.
Chapter 8.26 Display Power Cable Assembly and Display Data Cable Assembly
To remove the display power cable assembly or the display data cable assembly,
or both:
