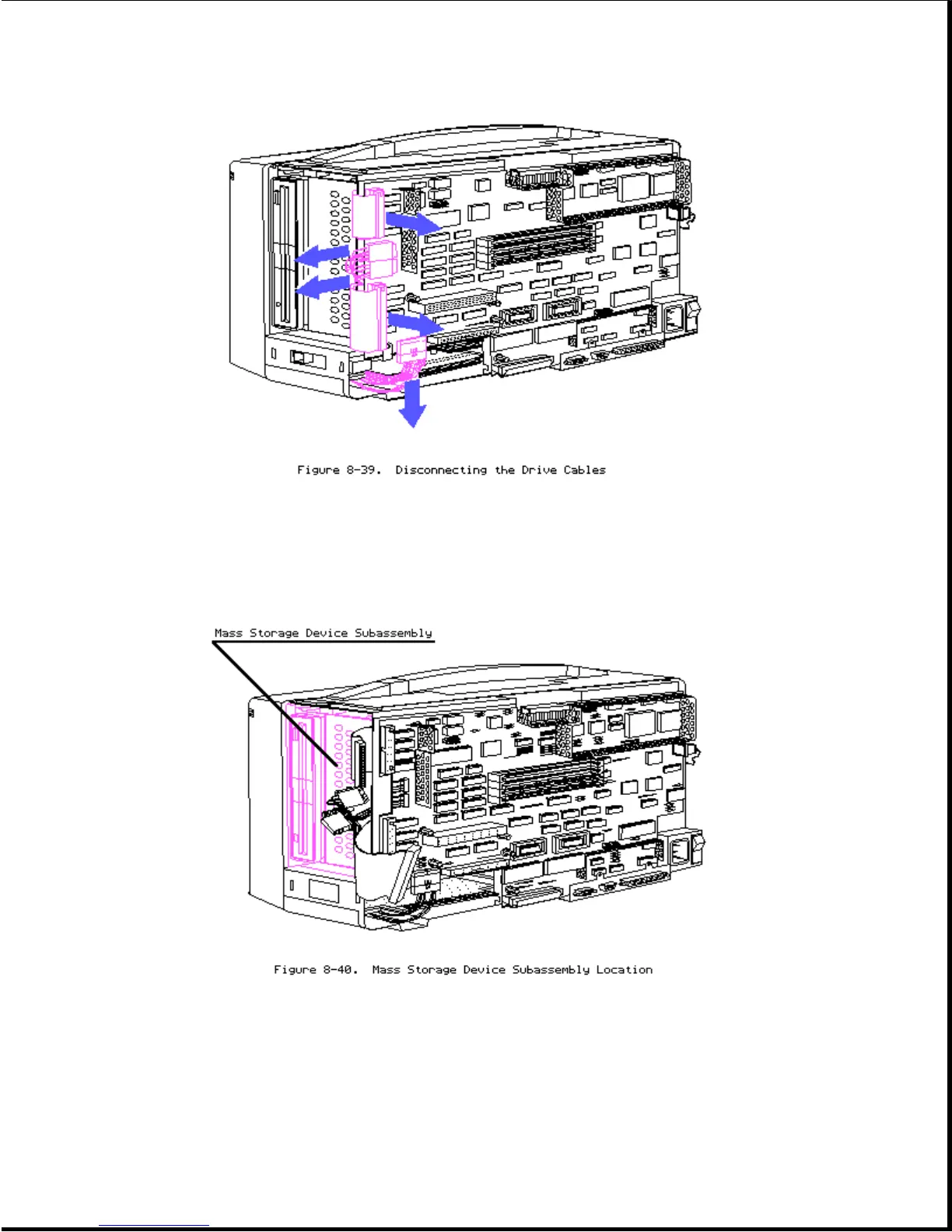

6. Locate the mass storage device subassembly shown in Figure 8-40.

7. Remove the screw that secures the mass storage device subassembly to the

mass storage device enclosure (Figure 8-41).
