5. To release the module, insert a tool, such as a ball point pen, into the
hole at one end of the module.

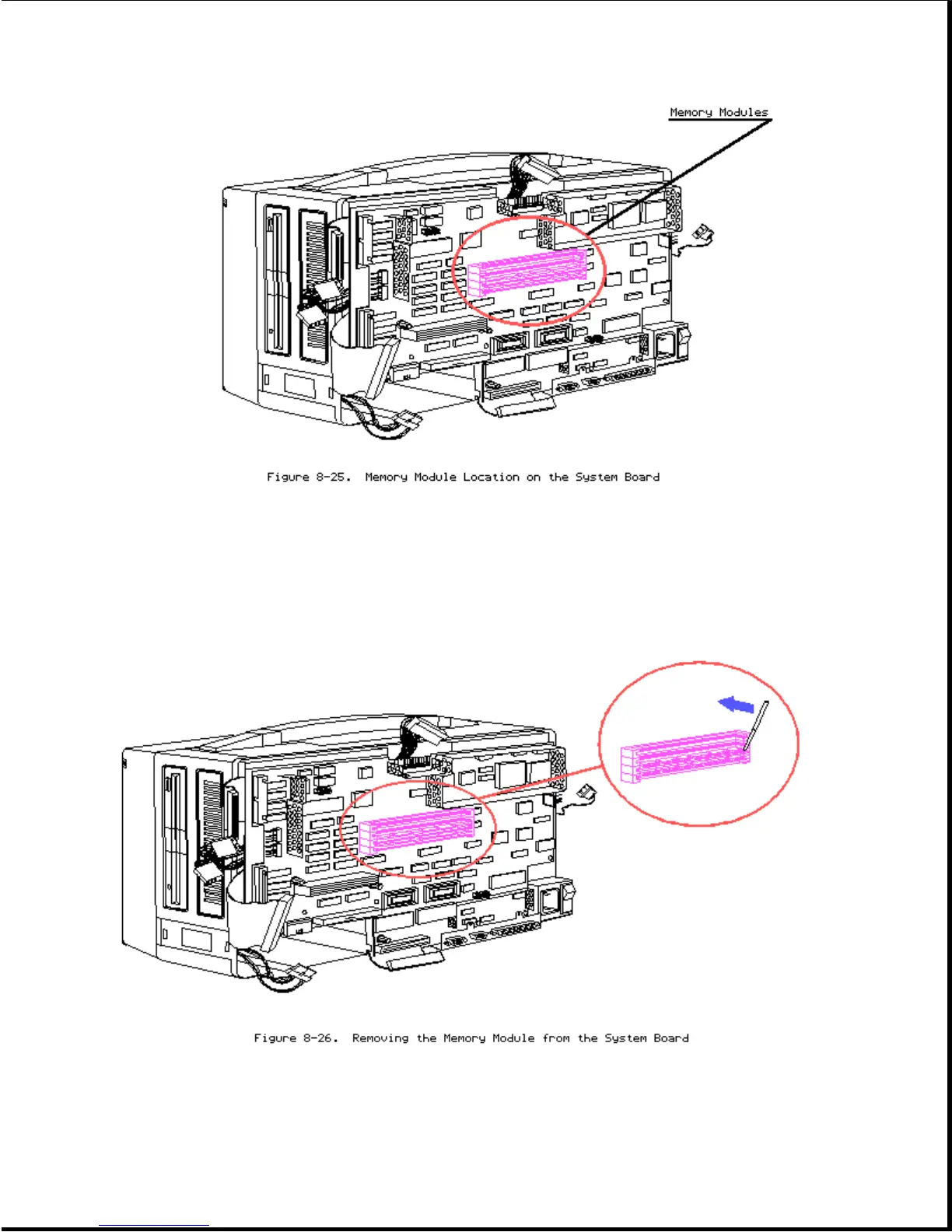

6. Grasp the end of the module, pull up, and "peel" it away from its socket
(Figure 8-26).
To replace the memory module, simply reinsert it into its socket, then reverse
steps 1 through 3.
To remove a memory module from the 1 to 2 megabyte memory expansion board:
