To replace the keyboard assembly, reverse steps 1 through 4.
Chapter 8.4 Rear Panel
To remove the rear panel:
1. Complete the preparation procedure (see Section 8.2).
2. Place the computer keyboard side down on a level surface with the rear
panel facing upward.

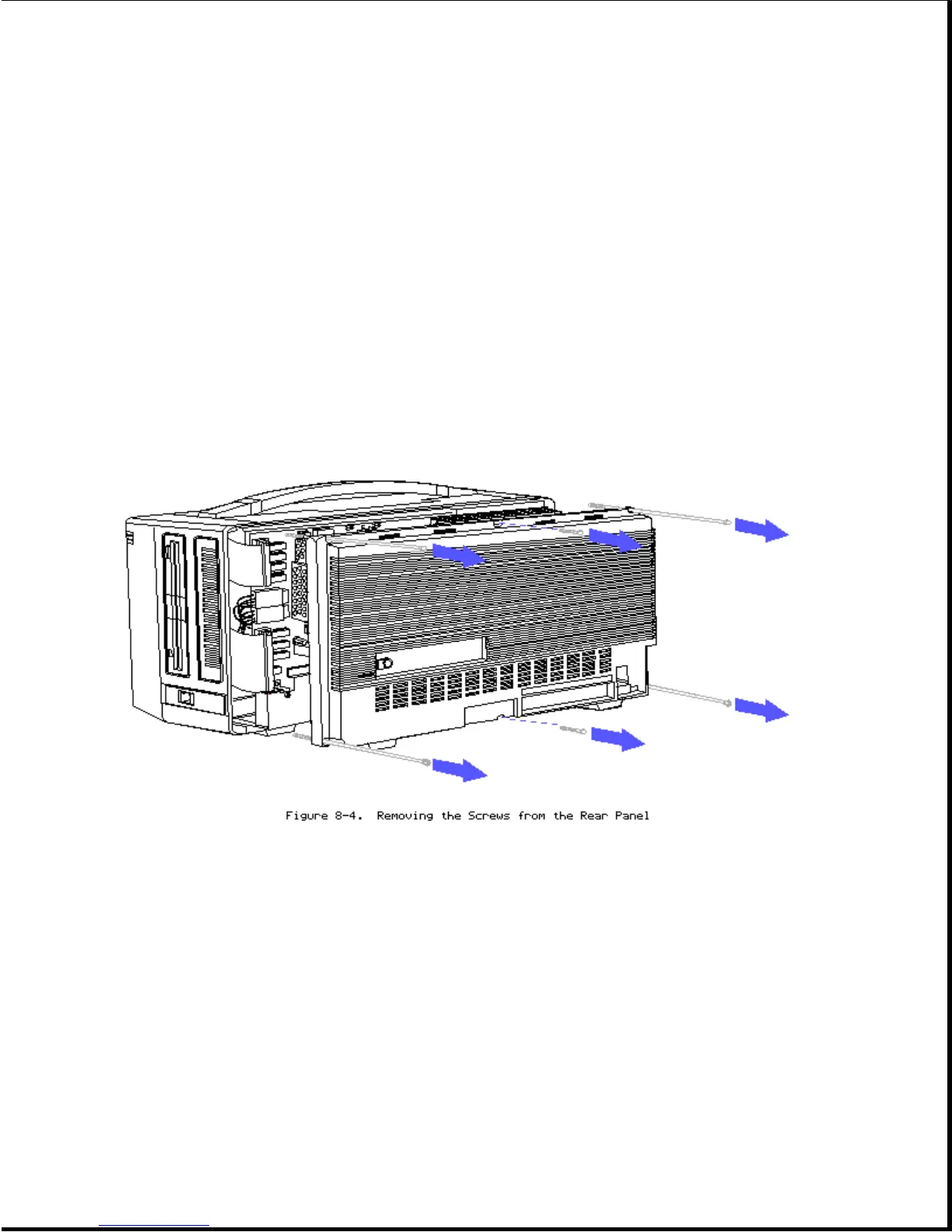

3. Remove the six screws and washers that secure the rear panel to the
computer (Figure 8-4). Note that the two screws you removed from the
center position are shorter than the other four screws.
4. Carefully pull the rear panel away from the computer and set it aside.
To replace the rear panel:
1. Place the rear panel on the computer.
2. Insert the two shorter screws and washers in the center holes.
3. Insert the four remaining screws and washers in the corner holes.
4. Start all six screws before completely tightening them.
5. Beginning with the center screws, tighten each screw.
