Chapter 7. Illustrated Parts Catalog
Chapter 7.1 Introduction
This chapter provides a spare parts reference for the COMPAQ PORTABLE 386
Personal Computer.
The information in each section is presented in tabular form. Each table
contains the following columns:
o Description - name of the particular part or parts kit.
o Part Number - to be used when ordering parts from Compaq Computer
Corporation.
Tables 7-1 through 7-4 contain a third column that provides reference numbers
keyed to specific illustrations.
Table 7-5 lists spare parts for the various options available for the
COMPAQ PORTABLE 386 Personal Computer.
Tables 7-6 and 7-7 list parts that are available only in a kit, and each kit
has only one part number.
Chapter 7.2 Display Enclosure Assembly
Table 7-1 lists the spare parts for the COMPAQ PORTABLE 386 Personal Computer

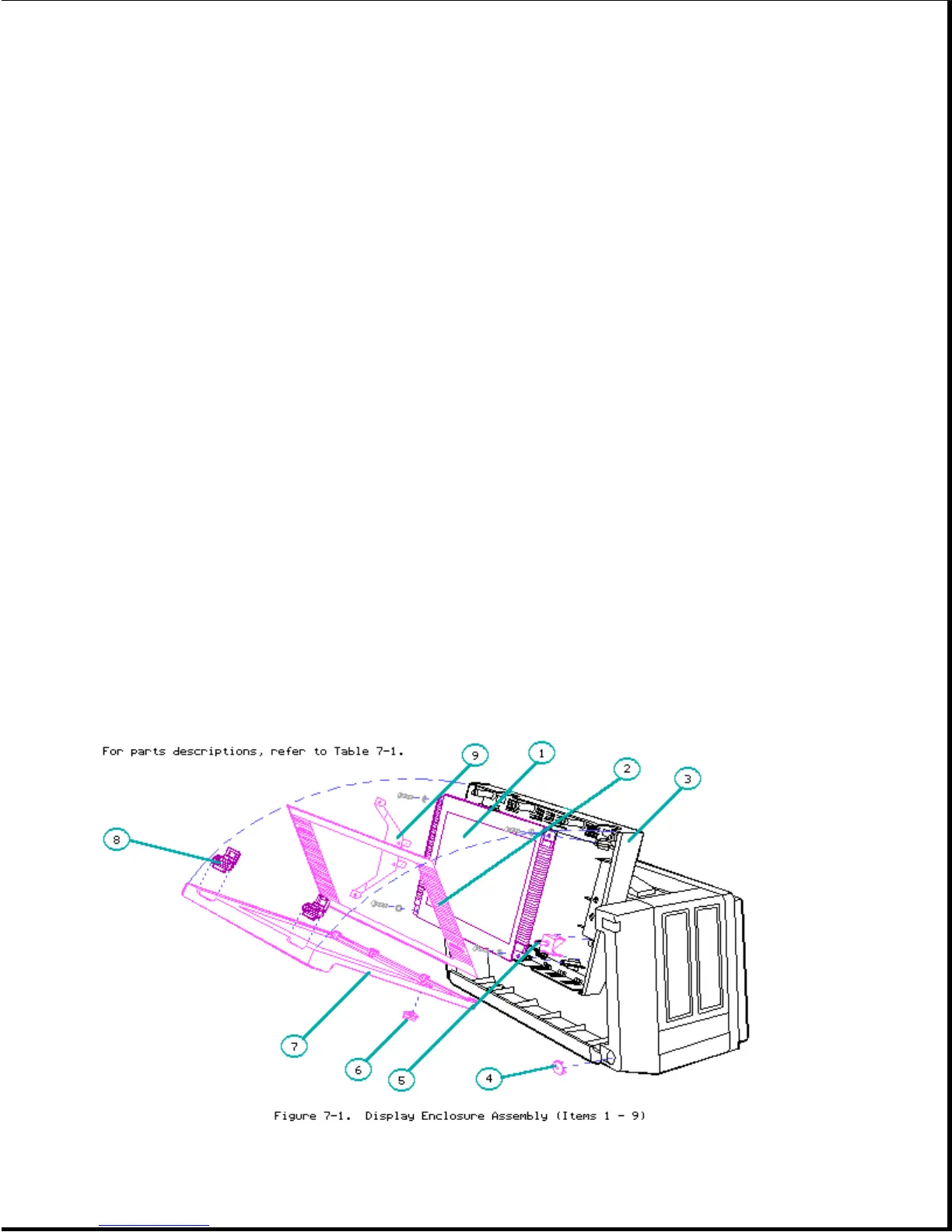

display enclosure. Items numbered 1 through 8 are illustrated in Figure 7-1.
Items numbered 9 through 15 are illustrated in Figure 7-2.
